Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex, LLC
Series Mini50 34826
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 24
Number of Rows 2
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.218" (5.55mm)
Contact Length - Post 0.110" (2.79mm)
Insulation Height 0.460" (11.68mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Syndiotactic Polystyrene (SPS), Glass Filled
Features Board Guide
Material Flammability Rating UL94 V-0
Insulation Color Gray
Applications Automotive
Base Product Number 034826
Standard Package 360 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 855774-0348260241
Ultra Librarian 3D Model Ultra Librarian 0348260241 CAD Model

Description

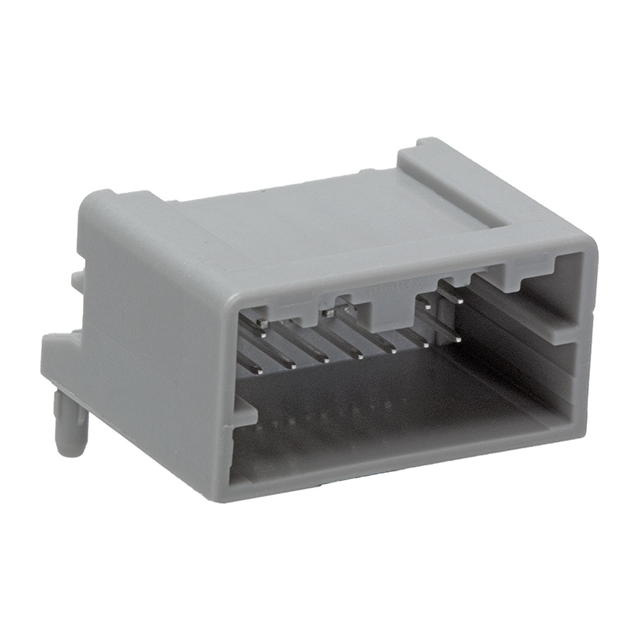

The Mini50 34826 series is a 24-position rectangular connector header with male pins.

  • Series: Mini50 34826
  • Positions: 24
  • Pin Gender: Male
  • Features: Board Guide, Latch Holder
  • Contact Material: Brass
  • Voltage Rating: - volts
  • Insulation Material: Syndiotactic Polystyrene (SPS) with Glass Filling
  • Application: Automotive
  • Mating Pitch: 0.079 inches (2.00mm)
  • Contact Finish: Tin
  • Contact Length (Mating): 0.218 inches (5.55mm)
  • Contact Length (Post): 0.110 inches (2.79mm)
  • Insulation Height: 0.460 inches (11.68mm)
  • Connector Shape: Square
  • Package: Tray
  • Standard Package Quantity: 360 pcs
