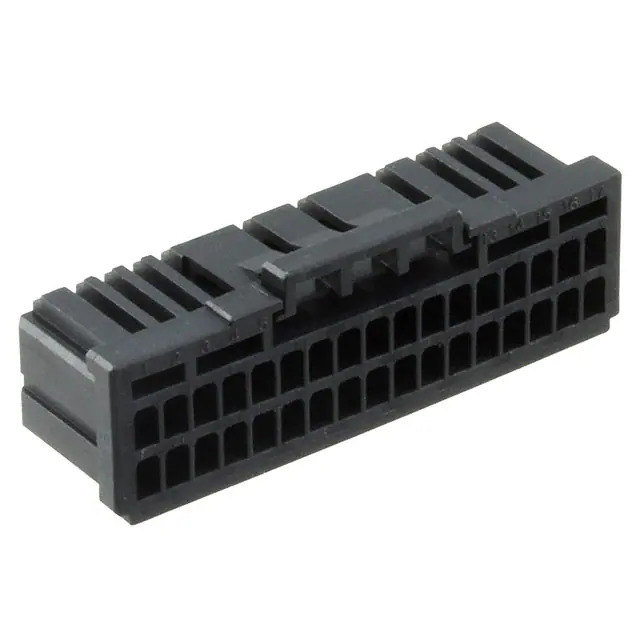

Same model may have multiple batches, images only for reference.

1-1827863-7

Name: 1-1827863-7
Brand: TE Connectivity
SKU: 1365684
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1-1827863-7
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 34POS 2.00MM / 34 Rectangular Connectors - Housings Receptacle Black 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	TE Connectivity AMP Connectors
Series	Dynamic D-1100
Package	Bulk
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	34
Pitch	0.079" (2.00mm)
Number of Rows	2
Row Spacing	0.130" (3.30mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	Black
Features	Polarizing Key
Temperature Range - Operating	-55°C ~ 105°C
Note	Contacts Not Included
Base Product Number	1827863
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8538.90.6000
Win Source Part Number	1365684-1-1827863-7
Ultra Librarian 3D Model	Ultra Librarian 1-1827863-7 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors Dynamic D-1100 series is a polarizing key receptacle connector.

Current Rating: - Amps
Mounting: Free Hanging (In-Line)
Connector Type: Receptacle
Contact Gender: Female Socket
Positions: 34
Rows: 2
Pitch: 0.079" (2.00mm)
Row Spacing: 0.130" (3.30mm)
Fastening Type: Latch Lock
Contacts Included: No
Color: Black
