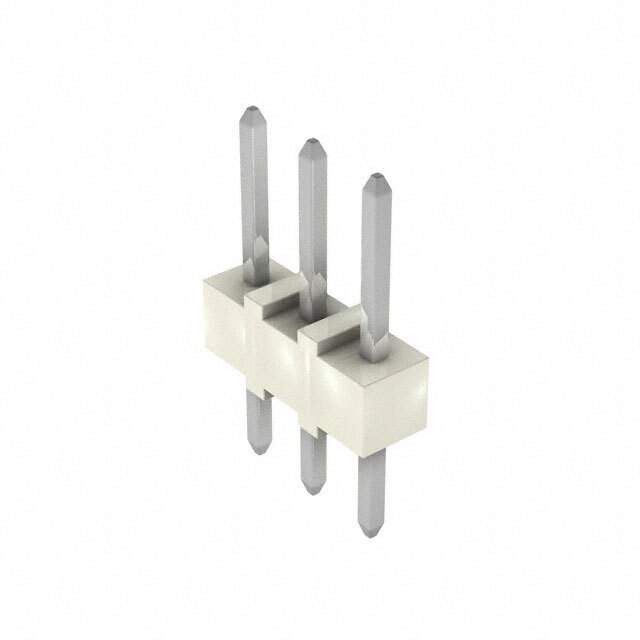

0022031031 Real Image
Same model may have multiple batches, images only for reference.

0022031031

Part No 0022031031
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 3POS 2.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex, LLC
Series KK250, 3022
Package Bulk
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.295" (7.49mm)
Contact Length - Post 0.134" (3.40mm)
Overall Contact Length 0.559" (14.20mm)
Insulation Height 0.130" (3.30mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Material Flammability Rating UL94 V-0
Insulation Color Natural
Base Product Number 002203
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 855491-0022031031
Ultra Librarian 3D Model Ultra Librarian 0022031031 CAD Model

Description

The KK250 series 3022 male pin header is a versatile and reliable connector for various applications.

  • Positions: 3
  • Termination: Solder
  • Contact Material: Brass
  • Fastening Type: Push-pull
  • Insulation Material: Polyamide (PA) and nylon
  • Contact Finish: Tin
  • Contact Length: 0.295 inches
  • Overall Contact Length: 0.559 inches
