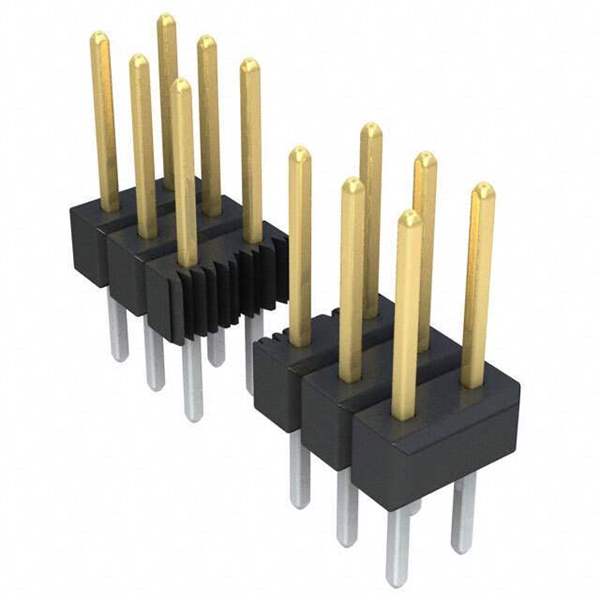

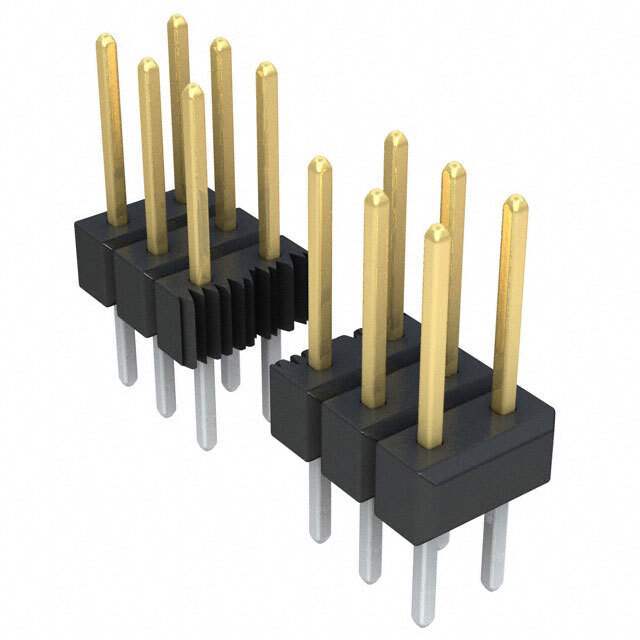

0010897262 Molex
Same model may have multiple batches, images only for reference.

0010897262

Part No 0010897262
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 26POS 2.54MM
Datasheet
0010897262 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Packaging Bulk
Part Status Active
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 26
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Ultra Librarian 3D Model Ultra Librarian 0010897262 CAD Model

Description

Connector Header Through Hole 26 position 0.100" (2.54mm)
