Same model may have multiple batches, images only for reference.

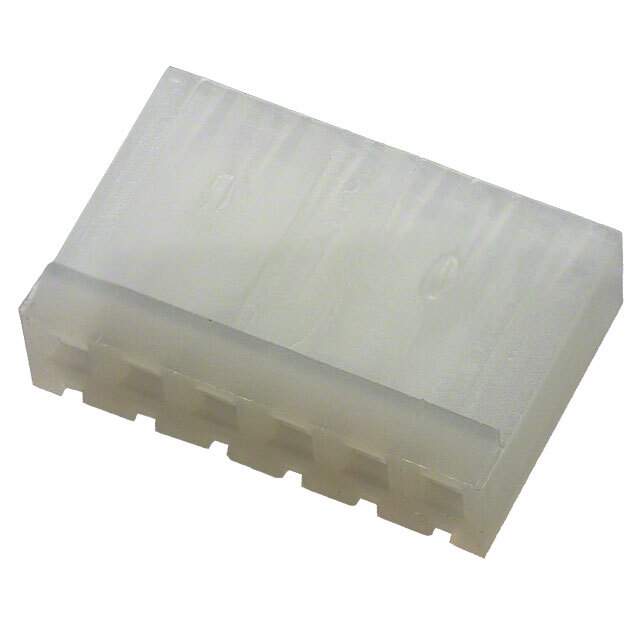

0009524064 Real Image
Same model may have multiple batches, images only for reference.

0009524064

Part No 0009524064
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HSNG RCPT 6POS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features 6 Rectangular Connectors - Housings Receptacle Natural 0.156" (3.96mm)
Manufacturer Molex, LLC
Series KK396, 5239
Package Bulk
Part Status Obsolete
Mounting Free Hanging (In-Line)
Family Name 000952
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number 0009-52-4064, 09-52-4064, 09524064, 5239-06, 9524064, WM2337
Quantity per package 500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 858685-0009524064
Ultra Librarian 3D Model Ultra Librarian 0009524064 CAD Model

Description

The Molex, LLC 858685-0009524064 is an obsolete rectangular connector housing receptacle with a natural color.

  • Series: KK396 and 5239
  • Connectors: 6
  • Mounting Type: Free hanging (in-line)
  • Supply and Demand Status: Limited
  • Package: 500 connectors
  • MSL Level: 1 (unlimited)
