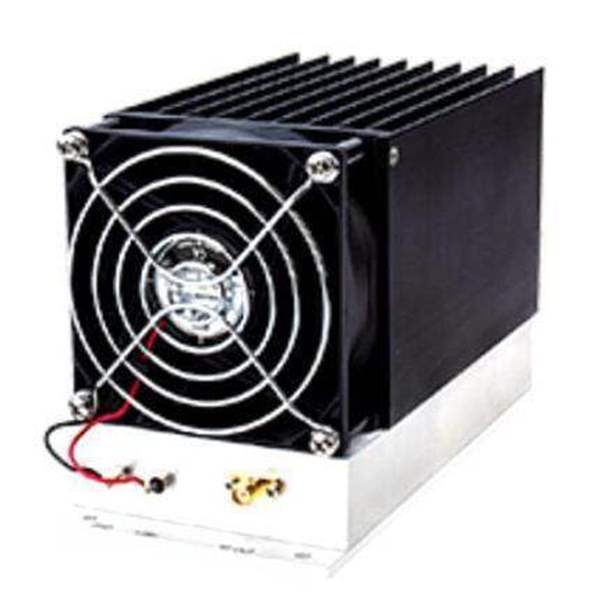

ZHL-2W-63-S+ Mini-Circuits
Same model may have multiple batches, images only for reference.

ZHL-2W-63-S+

Part No ZHL-2W-63-S+
Manufacturer Mini-Circuits
Catalog RF Amplifiers
Description BROADBAND AMPL / SMA / ROHS
Datasheet
ZHL-2W-63-S+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Description

Mini-Circuits’ ZHL-2W-63-S+ is class AB a medium-power connectorized amplifier with GaN output transistor supporting a wide range of applications from 600 to 6000 MHz, such as test instrumentation, SatCom, and mobile communications systems, including those operating in the new telecom Band 71 allocation (617 to 698 MHz). This model provides +33 dBm output power at saturation. The amplifier operates on a 28V DC supply and comes housed in compact aluminum alloy case (7.00 x 3.25 x 1.12”) with SMA connectors, built-in bracket for mounting, and an optional heat sink for efficient cooling.
