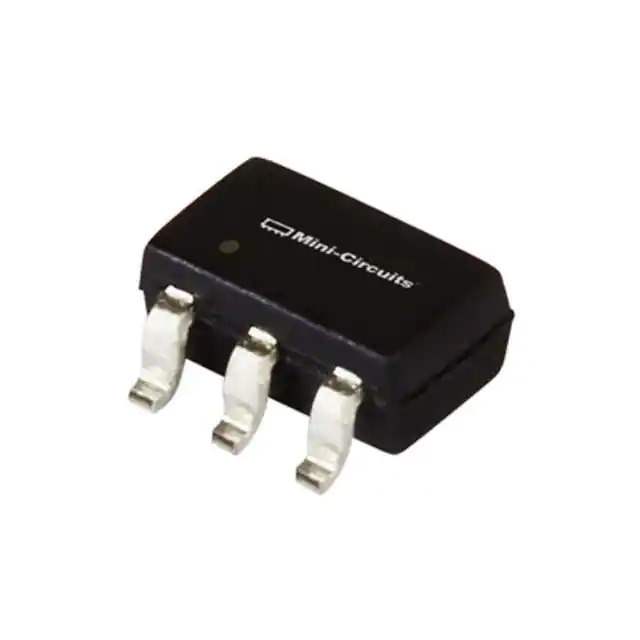

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency 50MHz ~ 4GHz
P1dB 20.5dBm
Gain 10.4dB
Noise Figure 1.7dB
RF Type Cellular, GSM, ISM, LTE, WCDMA, WiMAX, WLAN
Voltage - Supply 3V
Current - Supply 80mA
Test Frequency 3GHz ~ 4GHz
Mounting Type Surface Mount
Package / Case 6-VSSOP, SC-88, SOT-363
Supplier Device Package SC-70-6
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 834259-PSA-545+
Ultra Librarian 3D Model Ultra Librarian PSA-545+ CAD Model

Description

The 834259-PSA-545+ is an RF amplifier designed for use in RF and wireless applications. It operates in the frequency range of 50MHz to 4GHz, making it suitable for a wide range of applications including cellular, GSM, ISM, LTE, WCDMA, WiMAX, and WLAN.

  • This amplifier offers a gain of 10.4dB and a low noise figure of 1.7dB, ensuring high signal quality and minimal distortion.
  • With a voltage supply of 3V and a current supply of 80mA, it provides efficient power consumption.
  • The package type is 6-VSSOP, SC-88, SOT-363, and it is surface mountable for easy integration.
  • The 834259-PSA-545+ is an active product from Mini-Circuits, a reliable manufacturer in the industry.
