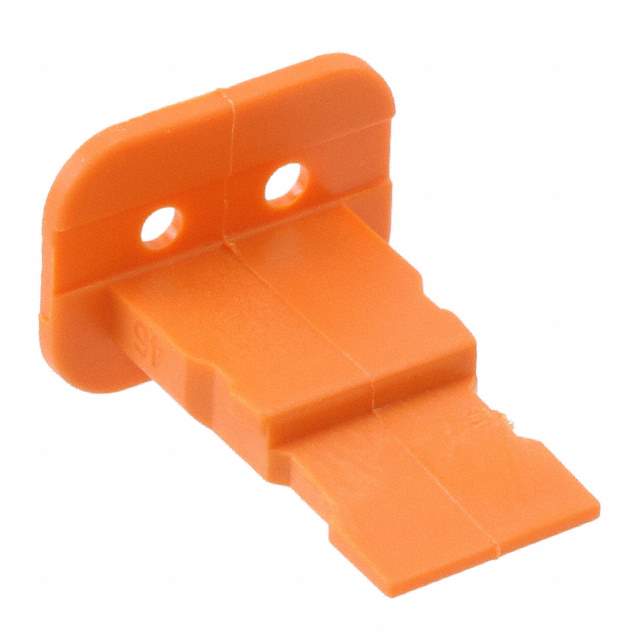

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Accessories
Manufacturer TE Connectivity Deutsch Connectors
Packaging Box
Accessory Type Wedgelock
Number of Positions 2
For Use With/Related Products DT Series Plugs
Base Product Number W2
RoHS Status RoHS Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8538.90.8180
Other Part Number -W2S-CSI,-W2S-LSI,1734-1037,-W2S-SI
Standard Package 1
Win Source Part Number 1332479-W2S
Ultra Librarian 3D Model Ultra Librarian W2S CAD Model

Description

The TE Connectivity Deutsch Connectors Wedgelock is an accessory type connector designed for use with DT Series Plugs.

  • Accessory Type: Wedgelock
  • Compatibility: DT Series Plugs
  • RoHS Compliant: Yes
  • Packaging: Box
  • Positions: Two
  • Connector Type: Rectangular Connector Accessories
  • MSL Level: Not Applicable
  • ECCN: EAR99
