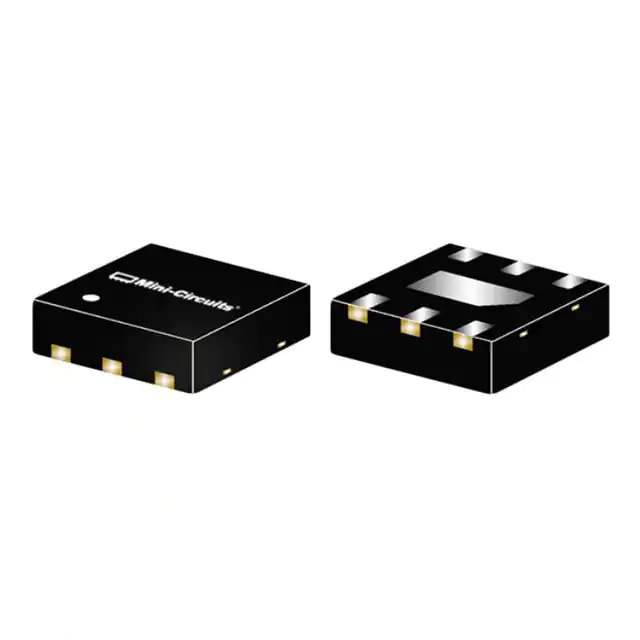

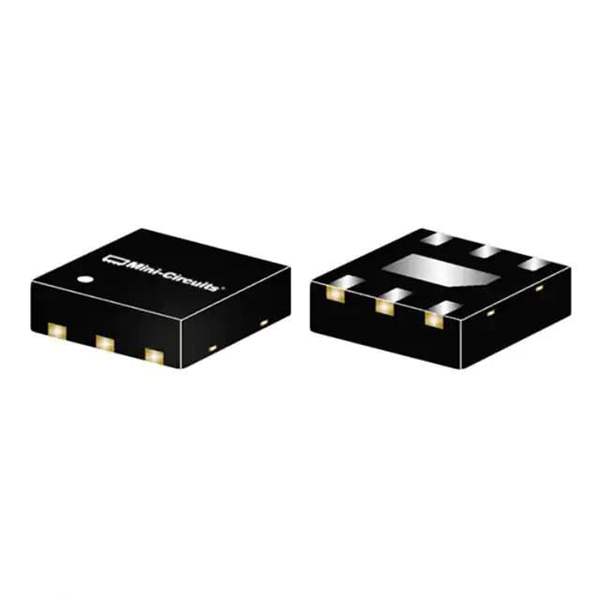

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency 10GHz ~ 13GHz
P1dB 14.4dBm
Gain 15.8dB
Noise Figure 1.5dB
RF Type Radar, VSAT
Voltage - Supply 3V, 5V
Current - Supply 29mA
Test Frequency 10.7GHz
Mounting Type Surface Mount
Package / Case 6-TDFN Exposed Pad
Base Product Number PMA2
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 844620-PMA2-133LN+
Ultra Librarian 3D Model Ultra Librarian PMA2-133LN+ CAD Model

Description

The PMA2-133LN+ is an RF amplifier designed for radar and VSAT applications, it's made by Mini-Circuits.

  • Frequency Range: 10GHz to 13GHz
  • Gain: 15.8dB
  • Noise Figure: 1.5dB
  • Current Supply: 29mA
  • Voltage Supply: 3V or 5V
  • Installation: surface mount
  • Package: 6-TDFN exposed pad
  • Category: RF and wireless
  • Status: active
