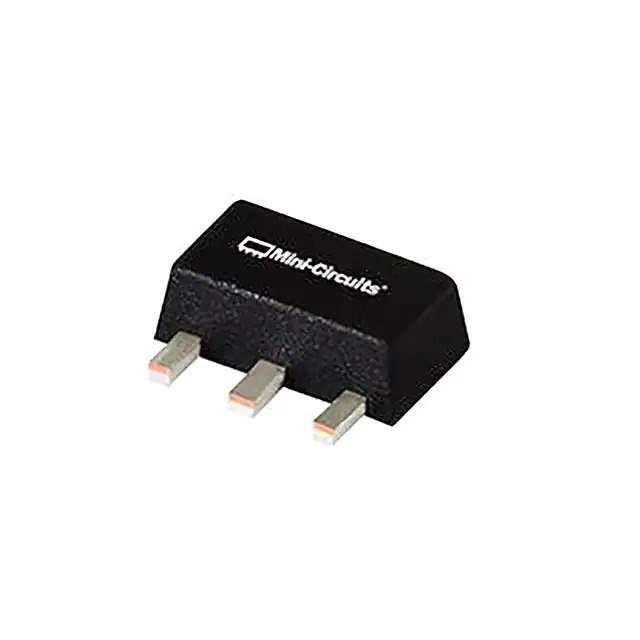

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency 40MHz ~ 2.6GHz
P1dB 20.9dBm
Gain 15.9dB
Noise Figure 2.1dB
RF Type CATV, DBS, LTE, MMDS, Wireless LAN
Voltage - Supply 4.8V ~ 5.2V
Current - Supply 63mA
Test Frequency 40MHz
Mounting Type Surface Mount
Package / Case TO-243AA
Supplier Device Package SOT-89
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 273599-PGA-105+
Ultra Librarian 3D Model Ultra Librarian PGA-105+ CAD Model

Description

The Mini-Circuits 273599-PGA-105+ is an RF amplifier designed for various applications and manufactured by Mini-Circuits.

  • Frequency Range: 40MHz to 2.6GHz
  • Gain: 15.9dB
  • Noise Figure: 2.1dB
  • Supply Voltage: 4.8V to 5.2V
  • Current Supply: 63mA
  • Mounting: Surface Mountable
  • Package: TO-243AA
  • Supplier Device Package: SOT-89
  • Status: Active
  • Standard Package: 1,000 pieces
