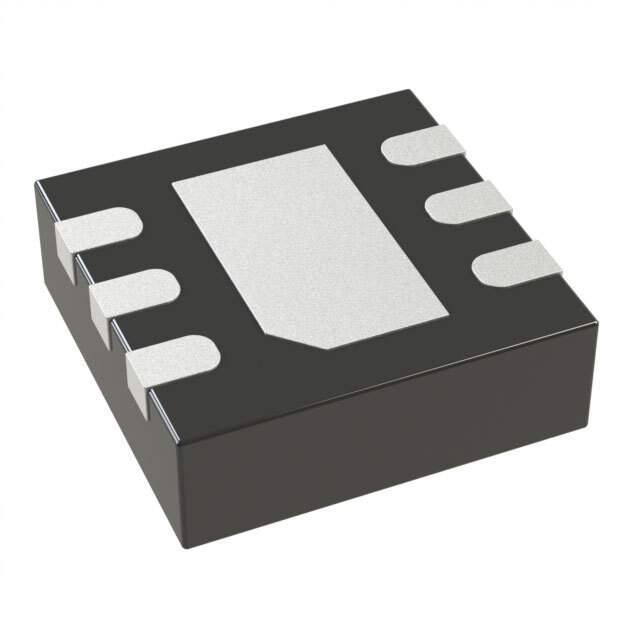

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Package Tape & Reel (TR)
Product Status Active
Frequency 0Hz ~ 7GHz
P1dB 20.7dBm
Gain 7.9dB
Noise Figure 5.1dB
RF Type CATV, DBS, LTE, MMDS, Wireless LAN
Voltage - Supply 4.75V ~ 5.25V
Current - Supply 111mA
Test Frequency 1GHz
Grade -
Mounting Type Surface Mount
Package / Case 6-TDFN Exposed Pad
Ultra Librarian 3D Model Ultra Librarian LHY-84+ CAD Model

Description

LHY-84+ (RoHS compliant) is a wideband amplifier offering high dynamic range. Lead finish is matte tin. It has repeatable performance from lot to lot and is enclosed in a 2x2 mm QFN-style package. It uses patented Transient Protected Darlington configuration and is fabricated using InGaP HBT technology
