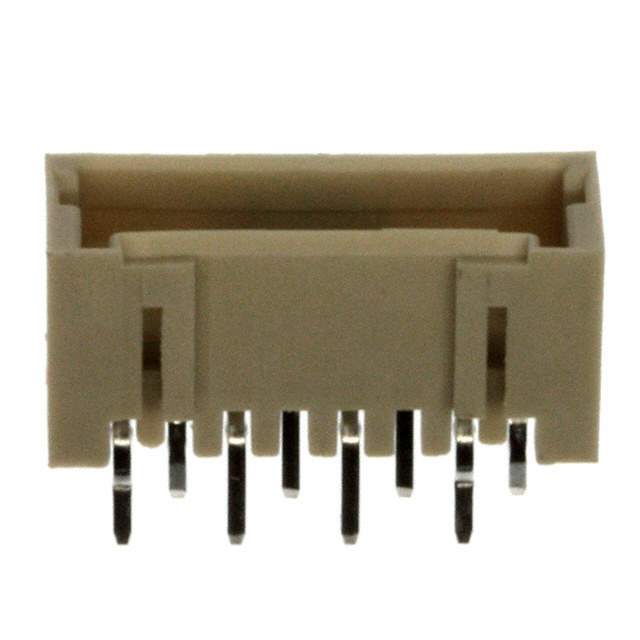

292207-8 Real Image
Same model may have multiple batches, images only for reference.

292207-8

Part No 292207-8
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER 8POS VERT 1.5MM TIN
Datasheet
292207-8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 8
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Kinked Pin, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.094" (2.40mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.307" (7.80mm)
Insulation Height 0.272" (6.91mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Board Guide
Temperature Range - Operating -30°C to 105°C
Material Flammability Rating UL94 V-0
Insulation Color Gray
Current Rating Varies by Wire Gauge
Voltage Rating 50VAC
Applications General Purpose
Win Source Part Number 1003680-292207-8
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 292207-8 CAD Model

Description

This is an 8-position male pin header connector from TE Connectivity AMP Connectors with part number 1003680-292207-8.

  • Connector: shrouded with 4 walls and has a board guide feature
  • Application: board to cable/wire
  • Product Status: active
  • Popularity: medium
  • Supply and Demand: balanced
  • Insulation Material: polyamide (PA), nylon, glass-filled
  • Voltage Rating: 50VAC
  • Current Rating: varies by wire gauge
  • Suitable for: general-purpose applications
