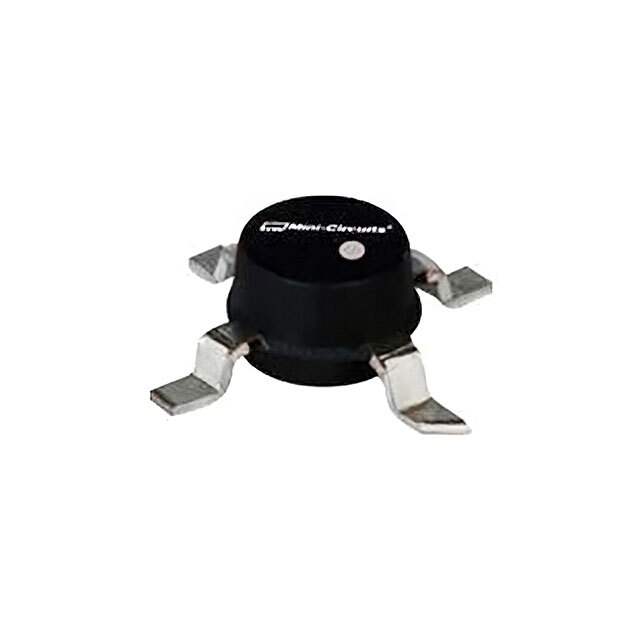

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency 0Hz ~ 6GHz
P1dB 13.1dBm
Gain 10.7dB
Noise Figure 3.4dB
RF Type Cellular, CATV, DBS, PCS, WLAN
Voltage - Supply 3.2V ~ 3.6V
Current - Supply 40mA
Test Frequency 100MHz
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 123594-ERA-2SM+
Ultra Librarian 3D Model Ultra Librarian ERA-2SM+ CAD Model

Description

ERA-2SM+ RF Amplifier

The ERA-2SM+ is a high-performance RF amplifier ideal for various applications requiring optimized signal amplification. This component is engineered to deliver exceptional consistency and reliability across a broad range of frequencies.

  • Applications:
    • Wireless communication systems
    • Satellite communication
    • RFID technology
  • Features and Benefits:
    • High gain and low noise figure
    • Wide frequency range
    • Excellent thermal stability
  • Additional Details:

    The ERA-2SM+ amplifier ensures minimal distortion and superior linearity, making it a preferred choice for professional RF applications.
