Same model may have multiple batches, images only for reference.

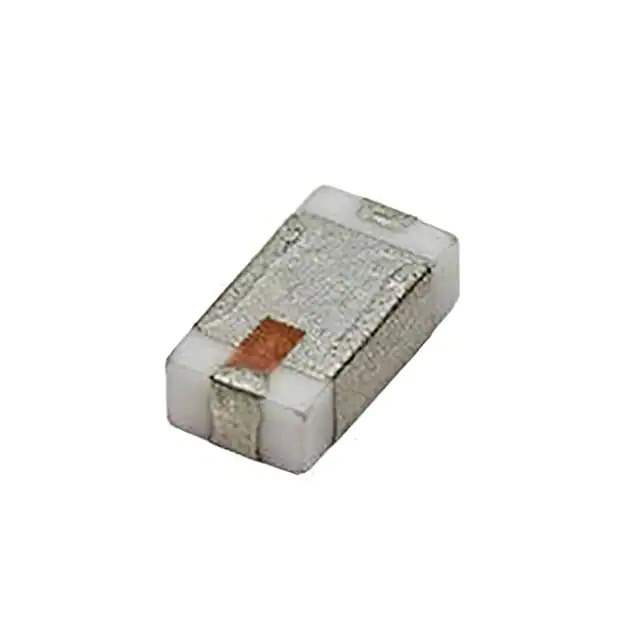

BFCN-1152+ Real Image
Same model may have multiple batches, images only for reference.

BFCN-1152+

Part No BFCN-1152+
Manufacturer Mini-Circuits
Catalog Ceramic Filters
Description LTCC BAND PASS FILTER, 11160 - 1
Datasheet
BFCN-1152+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ceramic Filters
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency 11.54GHz Center
Impedance 50Ohm
Bandwidth 810 MHz
Insertion Loss 7dB
Filter Type Band Pass
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height (Max) 0.041" (1.04mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 864156-BFCN-1152+
Ultra Librarian 3D Model Ultra Librarian BFCN-1152+ CAD Model

Description

The 864156-BFCN-1152+ is a ceramic band pass filter designed for electronic applications.

  • Manufacturer: Mini-Circuits
  • Frequency: 11.54GHz
  • Impedance: 50Ohm
  • Insertion Loss: 7dB
  • Mounting Type: Surface Mount
  • Package: 4-SMD, no lead
  • Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Height: 0.041" (1.04mm)
  • Bandwidth: 810 MHz
  • Package Quantity: 3,000 pcs
  • Status: Active
