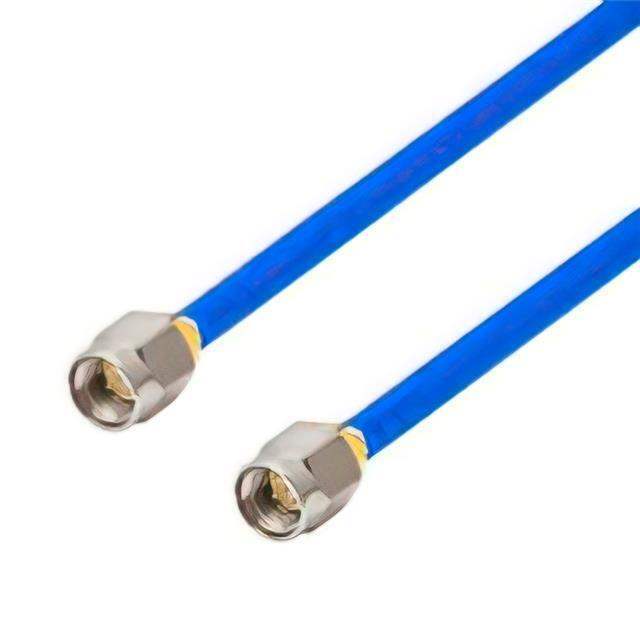

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1209659-141-7SM+
Manufacturer Mini-Circuits
Category Cable Assemblies- Coaxial Cables (RF)
Package Bag
Product Status Active
Style SMA to SMA
Length 7.000" (177.80mm)
Cable Type Hand Formable .141
Overall Impedance 50 Ohms
Frequency - Max 18 GHz
Color Blue
Ultra Librarian 3D Model Ultra Librarian 141-7SM+ CAD Model

Description

The 141 Series Hand-FlexTM Coaxial Cables are ideal for interconnection of coaxial components or sub-systems. The construction includes a silver-plated copper-clad steel center conductor which maintains the shape after bending. The outer shield is copper braid, tin soaked, which minimizes signal leakage and at the same time flexible for easy bend. Dielectric is low loss PTFE. Connectors have passivated stainless-steel coupling nut over a gold plated connector body and Silver Plated Copper Clad Steel.
