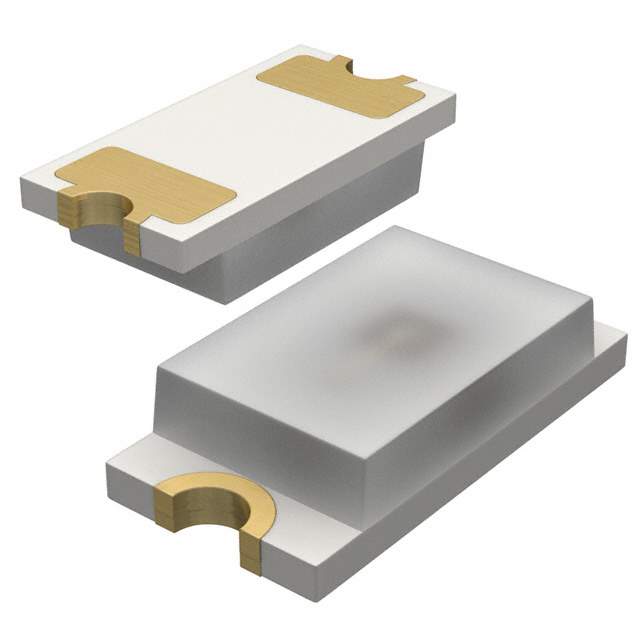

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Color Red
Lens Color White
Lens Transparency Diffused
Millicandela Rating 40mcd
Lens Style/Size Rectangle with Flat Top, 1.20mm x 0.80mm
Forward Voltage 2.2V
Current - Test 20mA
Mounting SMD (SMT)
Wavelength - Dominant 630nm
Case / Package 0603 (1608 Metric)
Height (Max) 0.46mm
Win Source Part Number 1098469-SML-E12V8WT86
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SML-E12V8WT86 CAD Model

Description

The SML-E12V8WT86 is a optoelectronic device that belongs to the Optoelectronics category.

  • Manufacturer: Rohm Semiconductor
  • Case/Package: 0603 (1608 Metric)
  • Color: Red
  • Lens Transparency: Diffused
  • Viewing Angle: -
  • Millicandela Rating: 40mcd
  • Forward Voltage: 2.2V
  • Current-Test: 20mA
