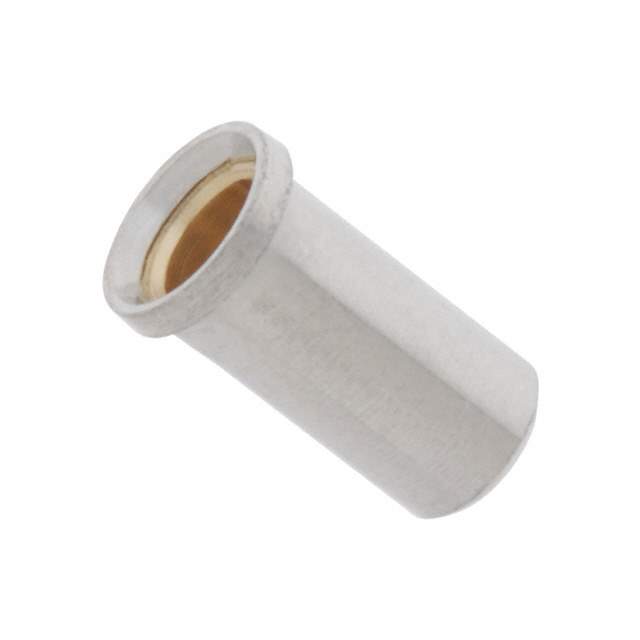

0364-0-15-01-13-27-10-0 Real Image
Same model may have multiple batches, images only for reference.

0364-0-15-01-13-27-10-0

Part No 0364-0-15-01-13-27-10-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Terminals
Description CONN PIN RCPT .048-.064 SOLDER / Pin Receptacle Connector 0.048" ~ 0.064" (1.22mm ~ 1.63mm) No Tail Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>PC Pin Receptacles, Socket Connectors
Manufacturer Mill-Max Manufacturing Corp.
Packaging Bulk
Tail Type No Tail
Termination Solder
Length - Overall 0.213" (5.41mm)
Accepts Pin Diameter 0.048" ~ 0.064" (1.22mm ~ 1.63mm)
Pin Hole Diameter 0.088" (2.24mm)
Mounting Hole Diameter 0.100" (2.54mm)
Flange Diameter 0.120" (3.05mm)
Socket Depth 0.180" (4.57mm)
Contact Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 0364-0
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 364015011327100,ED5029,0364015011327100,0364-0-15-01-1327100,0364-0-15-01-13-27-1,00364015011327100
Standard Package 500
Win Source Part Number 1333506-0364-0-15-01-13-27-10-0
Ultra Librarian 3D Model Ultra Librarian 0364-0-15-01-13-27-10-0 CAD Model

Description

The Mill-Max Manufacturing Corp. PC Pin Receptacle Socket Connector is a through-hole connector with a mounting hole diameter of 0.100 inches (2.54mm).

  • Mounting Type: Through-Hole
  • Mounting Hole Diameter: 0.100 inches (2.54mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Contact Material: Beryllium Copper
  • Pin Diameter Accepted: 0.048 inches to 0.064 inches (1.22mm to 1.63mm)
  • Socket Depth: 0.180 inches (4.57mm)
  • Temperature Range: -55°C to 125°C
  • Suitable for: Use in various terminal applications.
