Same model may have multiple batches, images only for reference.

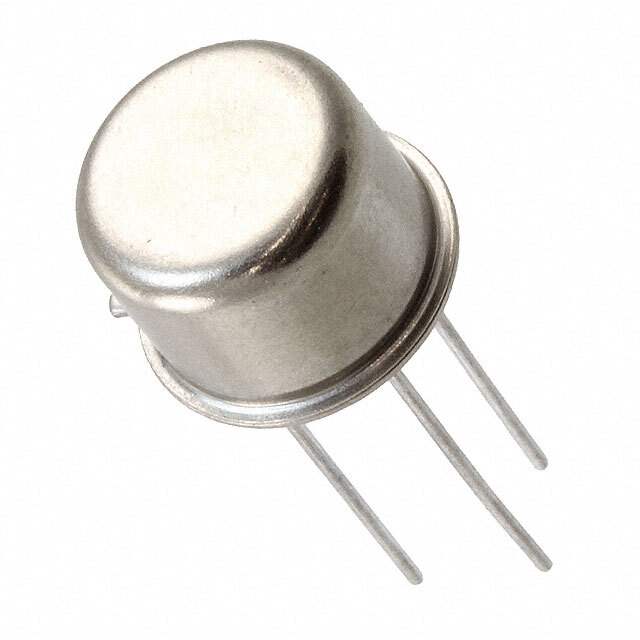

JANTX2N2324S Real Image
Same model may have multiple batches, images only for reference.

JANTX2N2324S

Part No JANTX2N2324S
Manufacturer Microsemi Corporation
Catalog SCRs - Single
Description DIODE SILICON CTRL TO-5
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Status Obsolete(EOL)
Voltage - Off State 100V
Voltage - Gate Trigger (Vgt) (Max) 800mV
Current - Gate Trigger (Igt) (Max) 200μA
Current - On State (It (AV)) (Max) 220mA
Current - Hold (Ih) (Max) 2mA
SCR Type Sensitive Gate
Temperature Range - Operating -65°C to 125°C
Mounting Through Hole
Case / Package TO-5
Win Source Part Number 132887-JANTX2N2324S
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian JANTX2N2324S CAD Model

Description

The Microsemi Corporation SCR type sensitive gate with bulk packaging is a through-hole mounting electronic component that has a maximum current hold of 2mA and a voltage off state of 100V.

  • Maximum Gate Trigger Voltage: 800mV
  • Maximum Gate Trigger Current: 200μA
  • Maximum On-State Current: 220mA
  • Current Non-Repetitive Surge: Not specified
  • Status: Obsolete (EOL)
  • Operating Temperature Range: -65°C to 125°C
  • Package Type: TO-5
  • Quantity per Package: 1
