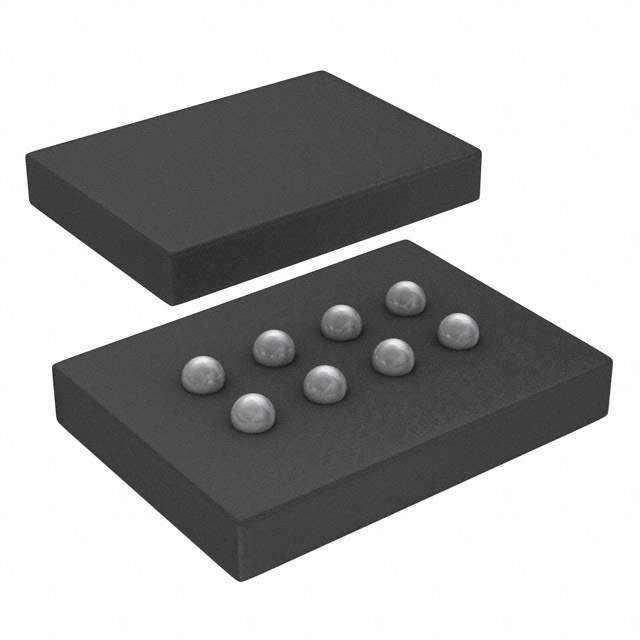

The N25Q016A11E5140F is a 16 Mb (Megabit) Serial Flash Memory device manufactured by Micron Technology Inc. It's part of the N25Q family, known for its high performance, low power consumption, and compact packaging, making it suitable for a wide range of embedded applications. This specific part number indicates certain configuration options, packaging and temperature grade.

Applications

• Embedded Systems: Used for storing boot code, configuration data, and application code in embedded systems.
• Consumer Electronics: Found in devices like set-top boxes, digital TVs, and portable media players for storing firmware and user data.
• Industrial Applications: Employed in industrial control systems, data loggers, and other industrial equipment for reliable data storage.
• Networking Devices: Used in routers, switches, and other networking equipment for storing boot code and configuration data.
• Automotive Systems: Can be used in automotive applications for storing firmware updates and configuration settings.

Features

• Memory Size: 16 Mb (2MB) of storage capacity.
• Interface: Serial Peripheral Interface (SPI) for easy integration with microcontrollers.
• Supply Voltage: Operates on a single 2.7V to 3.6V power supply.
• Page Program: Supports page program operations for fast and efficient data writing.
• Sector Erase: Provides sector erase functionality for flexible memory management.
• Block Erase: Offers block erase capability for efficient bulk data erasure.
• Security Features: Includes security features like block protection to prevent unauthorized access.
• Operating Temperature: Industrial temperature range ensures reliable operation in harsh environments.
• Advanced Security Features: Includes features like One-Time Programmable (OTP) bits and unique ID for enhanced security.

Benefits

• High Performance: Provides fast read, write, and erase operations for quick system response.
• Low Power Consumption: Minimizes power usage, making it ideal for battery-powered devices.
• Compact Size: Small package size allows for easy integration into space-constrained applications.
• Reliable Data Storage: Ensures data integrity and long-term data retention.
• Simplified System Design: SPI interface simplifies the connection to microcontrollers and other host devices.
• Cost-Effective Solution: Provides a cost-effective solution for non-volatile memory requirements.
• Enhanced Security: Protects sensitive data from unauthorized access and tampering.

Additional Details

The N25Q016A11E5140F utilizes a CMOS process technology, contributing to its low power consumption and high reliability. It is available in various package options to suit different application needs. The SPI interface supports various modes, including standard SPI, Dual SPI, and Quad SPI, allowing for flexible data transfer rates. The device also features a deep power-down mode to further reduce power consumption when the device is not actively being used. Its robust design and comprehensive feature set make it a versatile choice for a wide range of embedded systems.
