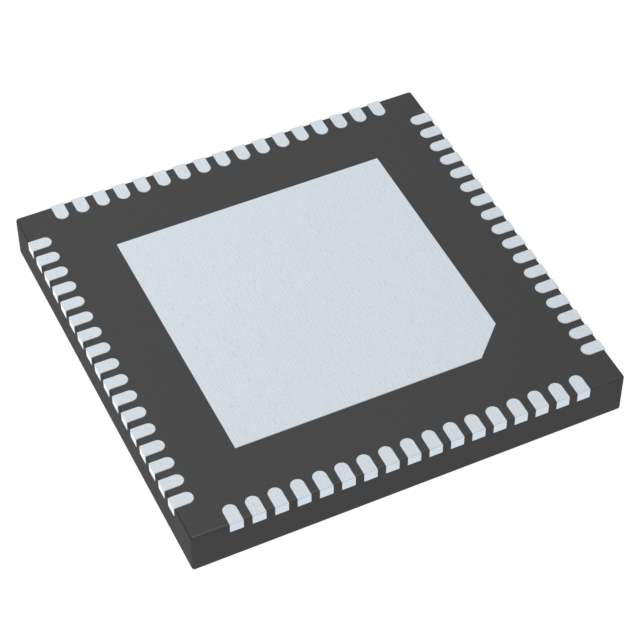

Microchip Technology VSC8540XMV-05 Ethernet PHY Transceiver

The Microchip Technology VSC8540XMV-05 is a highly integrated Ethernet physical layer transceiver (PHY) that supports a multitude of connection speeds and standards. It is designed for fast and reliable network communication in industrial, automotive, and embedded systems applications. This robust PHY transceiver offers an optimal solution for developers looking to implement networking capabilities into their designs with minimal complexity and maximum efficiency.

Featuring support for 10BASE-T, 100BASE-TX, and 1000BASE-T Ethernet standards, the VSC8540XMV-05 is versatile and can cater to various network speeds, ensuring compatibility with a wide range of network infrastructures. It is equipped with an RMII (Reduced Media Independent Interface) for streamlined connection to Ethernet controllers and processors, simplifying the design and reducing the overall system cost.

The device boasts advanced features such as Energy Efficient Ethernet (EEE) compliance for reduced power consumption, which is critical for energy-sensitive applications. This technology allows the PHY to enter a low-power idle state during periods of reduced link utilization, thereby conserving energy without sacrificing performance. Additionally, the VSC8540XMV-05 incorporates Microchip’s sophisticated EcoEthernet™ 2.0 technology that provides temperature monitoring and power adjustments to further enhance energy savings.

With its robust link performance and reliability, the VSC8540XMV-05 includes features such as cable diagnostics, link drop, and signal quality monitoring, enabling the detection of common network issues, which can be addressed promptly to maintain network integrity. The device also supports auto-negotiation to automatically select the highest performance mode and duplex, allowing seamless integration into auto-configuring environments.

Designed for harsh environments, the VSC8540XMV-05 is available in an industrial temperature range, making it suitable for deployment in extreme conditions. Its compact package allows for easy integration into space-constrained applications, while still providing the full feature set required for demanding networking tasks.

In summary, the VSC8540XMV-05 from Microchip Technology is a feature-rich and reliable Ethernet PHY transceiver that offers a combination of performance, energy efficiency, and versatility, ideal for a wide array of networking applications across various industries.
