The TC4468MJD is a versatile and robust integrated circuit produced by Microchip Technology, designed to cater to a wide array of applications that require reliable and efficient power management. This device is a member of the high-speed MOSFET driver family, capable of delivering high peak current outputs with minimal delay times.

Key Features

• High Peak Output Current: The TC4468MJD can deliver up to 1.5A of peak current, making it suitable for driving large capacitive loads with ease.
• Wide Operating Voltage Range: It operates across a broad voltage range, typically from 4.5V to 18V, providing flexibility in various power supply scenarios.
• Low Shoot-Through/Cross-Conduction Current: The device is designed to minimize the current that flows through both the high-side and low-side MOSFETs when switching, reducing power loss and improving efficiency.
• Matched Rise and Fall Times: The TC4468MJD offers matched rise and fall times, which ensures balanced switching characteristics for the MOSFETs being driven.
• Latch-Up Protected: It includes latch-up protection, enhancing the device's robustness against overcurrent conditions.
• Logic Input Thresholds: The driver features CMOS/TTL compatible inputs, allowing it to interface with a variety of logic families.

Applications

The TC4468MJD is highly adaptable and can be employed in numerous applications such as:

• DC-DC converters
• Motor control circuits
• Power supply management
• Pulse generators
• Robotics
• Automotive and aerospace electronics

Product Specifications

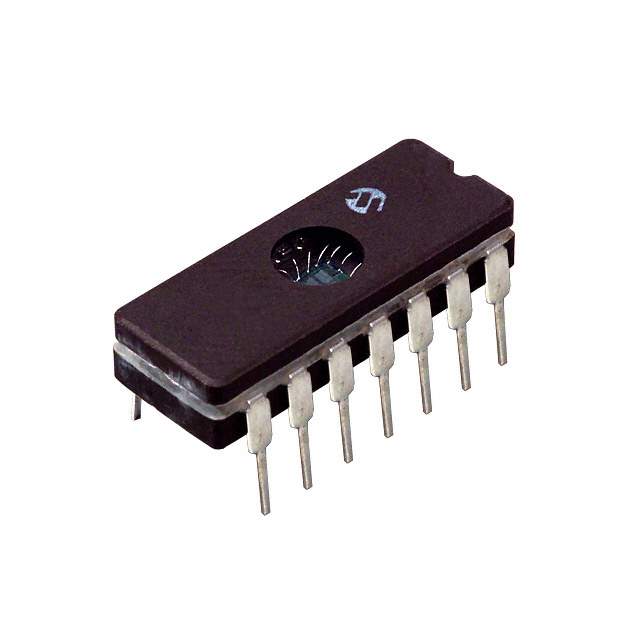

The TC4468MJD is packaged in a robust 14-pin Ceramic Dual In-line Package (CERDIP), which provides excellent thermal and environmental performance. Its operating temperature range from -55°C to +125°C ensures reliability in extreme conditions, making it suitable for industrial and automotive applications where temperature variations are common.

As a product of Microchip Technology, a leader in microcontroller and analog semiconductors, the TC4468MJD is backed by a commitment to quality and long-term availability, making it a trustworthy choice for engineers and designers looking for a high-performance MOSFET driver solution.
