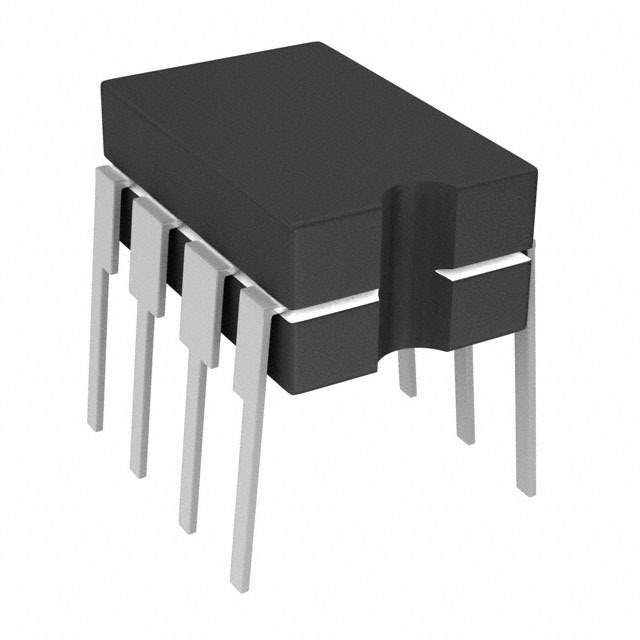

TC4428AMJA

Part No TC4428AMJA
Manufacturer Microchip Technology
Catalog PMIC - Gate Drivers
Description 1.5A DUAL HIGH-SPEED POWER MOSFET DRIVERS | IC MOSFET DVR 1.5A DUAL HS 8CDIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Microchip Technology
Packaging Tube
Driven Configuration Low-Side
Channel Type Independent
Number of Drivers 2
Gate Type N-Channel, P-Channel MOSFET
Supply Voltage (V) 4.5V ~ 18V
Logic Voltage - VIL, VIH 0.8V, 2.4V
Current - Peak Output (Source, Sink) 1.5A, 1.5A
Input Type Inverting, Non-Inverting
Rise / Fall Time 25ns, 25ns
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package 8-CDIP
Supplier Device Package 8-CERDIP
Family Part Number TC4428A
Manufacturer Pack Quantity 56
MSL Level 1 (Unlimited)
Win Source Part Number 1264594-TC4428AMJA
Manufacturer Homepage www.telcom-semi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TC4428AMJA CAD Model

Description

Microchip Technology TC4428AMJA Power Driver

The TC4428AMJA is a robust, high-speed, dual-channel MOSFET driver designed and manufactured by Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This driver is specifically engineered to convert TTL or CMOS input logic levels to high-current outputs at voltages up to 18V. Its versatility and performance make it an ideal choice for a wide range of applications, including but not limited to, power MOSFET gate drivers, line drivers, and motor controllers.

Key Features

  • High Peak Output Current: The device can deliver up to 1.5A of peak output current, which is suitable for driving large capacitive loads with excellent transient response.
  • Wide Operating Voltage Range: It operates over a supply voltage range of 4.5V to 18V, making it compatible with a variety of control logic and power systems.
  • Matched Rise and Fall Times: The TC4428AMJA offers matched rise and fall times, providing a symmetrical drive that helps to minimize switching losses and reduce electromagnetic interference (EMI).
  • High-Speed Operation: With a propagation delay time of typically 55ns, this driver is capable of high-frequency operation, which is crucial for modern, fast-switching applications.
  • Input Logic Level Flexibility: The device accepts both TTL and CMOS input logic levels, ensuring compatibility with a broad range of microcontrollers and digital logic circuits.
  • Robust Latch-Up Protection: The TC4428AMJA is designed with latch-up protection for all conditions within its power and voltage ratings, providing reliable operation under adverse conditions.

Package and Quality

The driver is offered in a CERDIP-8 (CERamic Dual In-line Package) package, denoted by the 'MJA' suffix in its part number. This package type is known for its high reliability and resistance to harsh environments, making it suitable for military and aerospace applications. Furthermore, the device is characterized for operation from -55°C to +125°C, ensuring performance in a wide range of temperatures.

Applications

With its high-speed, high-current driving capability and robust design, the TC4428AMJA is well-suited for driving power MOSFETs and IGBTs in a variety of applications, including switching power supplies, DC-DC converters, motor controls, and other power conversion or management tasks that require reliable and efficient power handling.

Microchip Technology's commitment to quality and performance is reflected in the TC4428AMJA, making it a trusted choice for engineers and designers looking for a dependable power driver solution.
