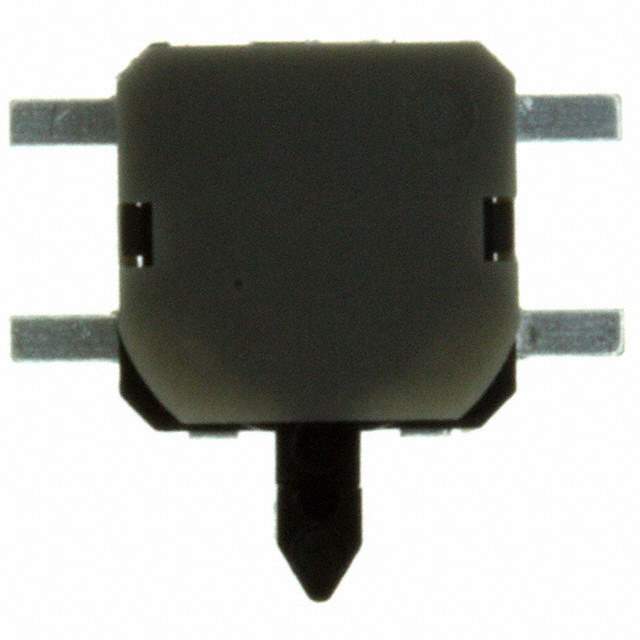

SDP001 Real Image
Same model may have multiple batches, images only for reference.

SDP001

Part No SDP001
Manufacturer C&K Components
Catalog Snap Action, Limit Switches
Description SWITCH DETECTOR SPDT 1MA 5V / Switch SPDT Surface Mount, Right Angle
Datasheet
SDP001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr C&K
Series SDP
Package Tape & Reel (TR)
Circuit SPDT
Switch Function Mom-Off-Mom
Current Rating (Amps) 1mA (DC)
Voltage Rating - DC 5 V
Actuator Type Angled Toggle (Detector)
Mounting Type Surface Mount, Right Angle
Termination Style SMD (SMT) Tab
Operating Force 30gf
Temperature Range - Operating -20°C ~ 70°C
Electrical Life 50,000 Cycles
Mechanical Life 50,000 Cycles
Other Names CKN9958TR,SDP001,*SDP001,CKN9958CT
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233681-SDP001
Ultra Librarian 3D Model Ultra Librarian SDP001 CAD Model

Description

The SDP001 limit switch is a SPDT circuit switch that has an angled toggle (detector) actuator type.

  • Manufacturer: C&K
  • Voltage Rating: 5 VDC
  • Current Rating: 1mA (DC)
  • Mounting Type: Surface mount, right angle
  • Operating Temperature: -20 degrees Celsius to 70 degrees Celsius
  • Electrical Life: 50,000 cycles
  • Mechanical Life: 50,000 cycles
  • Operating Force: 30gf
  • Standard Package: 2,000
  • Packaging: Tape & reel (TR)
  • Series: SDP
