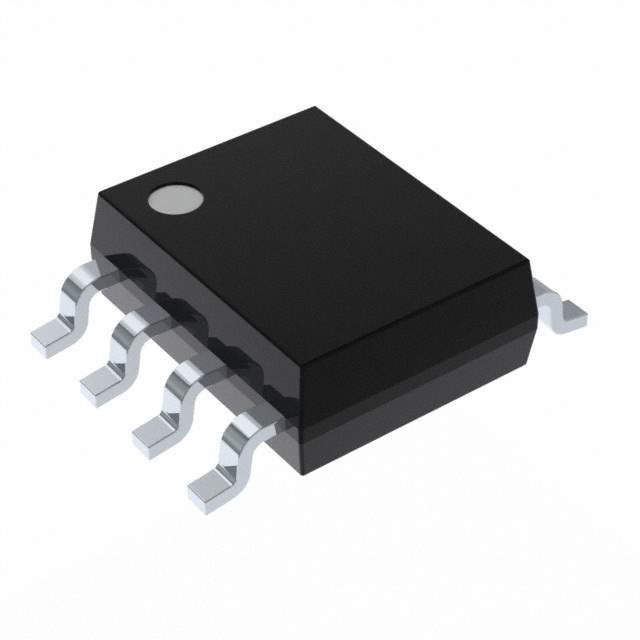

The TC4422ESM is a high-speed, single-output MOSFET driver manufactured by Microchip Technology, designed to deliver robust performance for a wide range of power management applications. This driver is capable of providing a peak output current of 9A, making it an excellent choice for driving large capacitive loads with swift rise and fall times.

Key Features

• High Peak Output Current: Capable of delivering up to 9A, ensuring efficient driving of high-capacity MOSFETs.
• Wide Input Supply Voltage Range: Operates from 4.5V to 18V, accommodating various application requirements.
• High-Speed Operation: With its fast rise and fall times (typically 30ns), the TC4422ESM is suitable for high-frequency applications.
• Latch-Up Protected: Withstands up to 1.5A of reverse current, providing robustness against latch-up.
• Logic-Level Input: Compatible with standard TTL and CMOS levels, ensuring easy integration with microcontrollers and other logic devices.
• Thermal Shutdown Protection: Features built-in thermal protection that safeguards the device from overheating.

Applications

The TC4422ESM is versatile and can be used in various applications, including:

• Switch Mode Power Supplies (SMPS)
• DC-to-DC Converters
• Motor Control Circuits
• Pulse Generators
• Power Amplifiers

Product Specifications

Parameter Value Output Current (Peak) 9A Supply Voltage Range 4.5V to 18V Rise/Fall Time 30ns (typical) Input Logic Compatibility TTL/CMOS Package Type 8-Pin SOIC

The TC4422ESM MOSFET driver is an essential component for designers looking for a reliable and high-performance solution to drive power MOSFETs in their electronic designs. With its robust feature set and Microchip's reputation for quality, this driver is an excellent choice for ensuring efficient operation and long-term reliability.
