The TC4420CAT is a robust, high-speed power MOSFET driver fabricated by Microchip Technology, designed to convert TTL or CMOS input logic levels to a high-current output at voltages up to 18V. Its ability to source and sink up to 6A of peak output current makes it an ideal choice for driving large capacitive loads, power MOSFETS, and IGBTs in a wide array of applications.

Key Features

• High Peak Output Current: Capable of delivering up to 6A, this driver can handle demanding applications that require high current for short durations.
• Wide Operating Range: The TC4420CAT operates within a voltage range of 4.5V to 18V, making it versatile for use in various circuit configurations.
• High-Speed Operation: With a propagation delay time of typically 55ns, this driver ensures swift response times, which is crucial for high-frequency applications.
• Latch-Up Protected: Rated to withstand up to 1.5A of reverse output current, the device is protected against latch-up, a common issue in power drivers.
• Matched Rise and Fall Times: The device provides symmetrical rise and fall times, which minimizes the switching losses and reduces electromagnetic interference (EMI).
• Input Logic Level Flexibility: Compatible with both TTL and CMOS input logic levels, the TC4420CAT can easily interface with a variety of control circuits.

Applications

The TC4420CAT is suitable for a broad range of applications, including but not limited to:

• Switch Mode Power Supplies (SMPS)
• DC-to-DC converters
• Motor controllers
• Pulse transformers
• Line drivers

Package and Quality

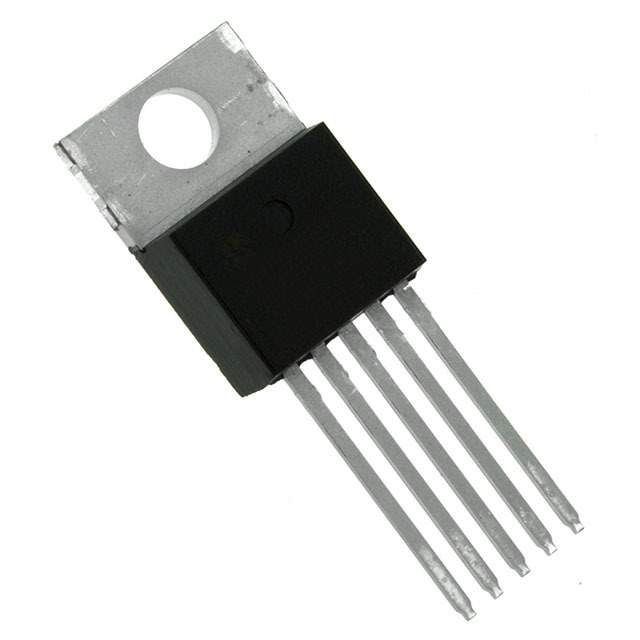

Enclosed in a TO-220-5 package, the TC4420CAT is designed for easy mounting and heat dissipation. Microchip Technology is committed to high-quality standards, ensuring that this MOSFET driver meets rigorous reliability and performance criteria.
