Microchip Technology SY100EP210UTI: High-Speed Clock Buffer

The SY100EP210UTI from Microchip Technology is a high-performance, low-skew 1:5 differential clock buffer designed for precision clock distribution in high-speed applications. It is part of Microchip's portfolio of clock and timing solutions that cater to the demanding requirements of modern electronic systems.

With its differential ECL (Emitter Coupled Logic) inputs and outputs, the SY100EP210UTI ensures minimal signal distortion and provides excellent high-speed characteristics. This makes it ideal for applications that require precise clock distribution, such as high-speed data communications, telecommunication infrastructure, automated test equipment, and advanced computing systems.

The device operates over a wide frequency range, supporting clock frequencies well into the gigahertz range, which is critical for supporting high-speed serial communication standards and ensuring system performance. Additionally, the SY100EP210UTI features a fail-safe input protection that maintains the output in a high impedance state if the inputs are left open, thus ensuring system stability.

Key features of the SY100EP210UTI include:

• Low Skew: The buffer provides low output-to-output skew, which is vital for maintaining the timing integrity of the clock signal across multiple destinations.
• High-Speed Operation: Designed to support very high-frequency clock signals, it can be used in systems that demand fast data rates and quick signal processing.
• Differential ECL Inputs and Outputs: This feature ensures robust signal integrity and reduces susceptibility to noise, which is crucial for reliable operation in noisy environments.
• Power Supply: The device typically operates at a 3.3V power supply, making it compatible with many contemporary digital systems.
• Temperature Range: It is designed to operate over an industrial temperature range, ensuring reliability and performance even in extreme conditions.

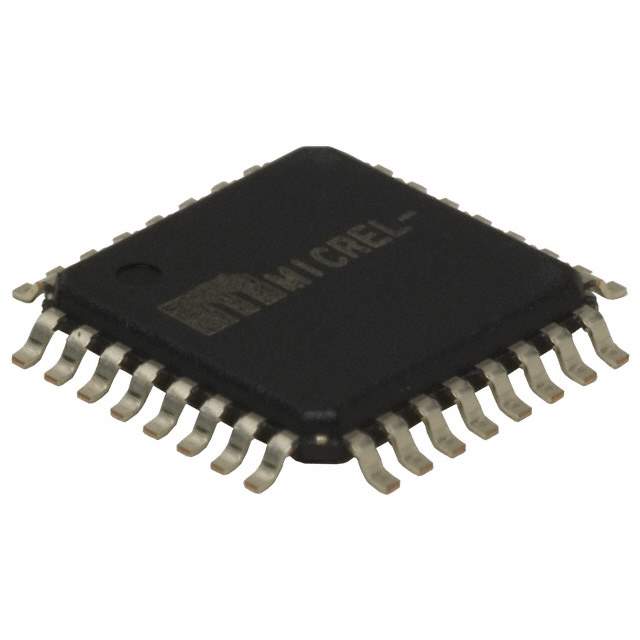

• Packaging: The SY100EP210UTI is available in a compact, surface-mount package that is suitable for densely populated PCBs.

Overall, the SY100EP210UTI from Microchip Technology is a versatile and reliable choice for system designers looking to distribute high-speed clock signals with precision and reliability. Its advanced features and robust design make it an excellent choice for a wide range of high-performance applications.
