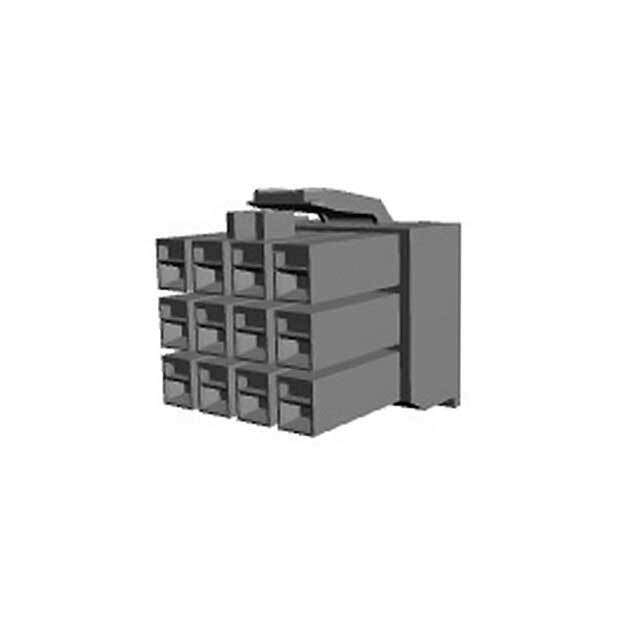

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series Universal Power
Package Bulk
Connector Type Plug
Contact Type Female Socket
Number of Positions 12
Pitch 0.156" (3.96mm)
Number of Rows 3
Row Spacing 0.181" (4.60mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Black
Note Contacts Not Included
Base Product Number 176278
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Other Names 2266-176278-9,176278-9-ND,A128205
Standard Package 500
Win Source Part Number 995337-176278-9
Ultra Librarian 3D Model Ultra Librarian 176278-9 CAD Model

Description

The 995337-176278-9 is a black universal power plug connector housing with 12 positions and a pitch of 0.156 inches.

  • Lock Fastening Type: Latch Lock
  • Contact Type: Female Socket
  • Connector Type: Plug
  • Rows: 3
  • Row Spacing: 0.181 inches
  • Package: Bulk
  • Standard Package: 500
  • Manufacturer: TE Connectivity AMP Connectors
  • ECCN: EAR99.90.6000
  • Note: Contacts are not included
