Microchip Technology's SST26VF080AT-80E/MF Serial Quad I/O Flash Memory

The SST26VF080AT-80E/MF is a cutting-edge, 8-Megabit Flash memory device designed by Microchip Technology, a leader in microcontroller and analog semiconductors. This compact, high-performance memory chip is part of the SST26VF family and offers a wealth of features that make it an ideal choice for a wide range of applications in the embedded systems market.

Key Features

• Memory Size: 8 Mb (Megabits) which provides ample storage for boot code, program code, and data storage in embedded applications.
• Interface Type: Serial Quad I/O (SQI) interface that allows for high-speed data transfer while maintaining a low pin count, improving board layout and reducing system complexity.
• Performance: The device boasts a high-speed clock frequency of 80 MHz, enabling fast read and write operations which are essential for performance-critical applications.
• Versatile Read/Write Operations: It supports various read and write commands, including Dual and Quad SPI commands, providing flexibility in the control and optimization of data transactions.
• Low Power Consumption: Designed with power efficiency in mind, this memory chip is suitable for battery-operated and power-sensitive applications.
• Operating Voltage: The device operates within a voltage range of 2.7V to 3.6V, accommodating a variety of power supplies and system voltages.
• Security: The SST26VF080AT-80E/MF includes a software-controlled write protection feature that ensures the integrity and security of the stored data.
• Endurance: This memory chip is built to last, with high endurance and reliability over its lifetime, making it a trustworthy choice for long-term applications.

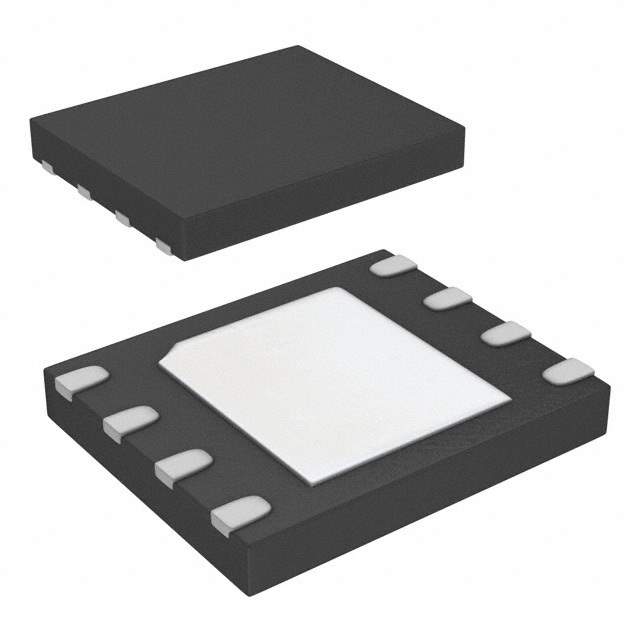

• Packaging: The device is available in an 8-contact WDFN package, which is known for its small footprint and suitability for space-constrained PCB designs.

Applications

The versatility and robustness of the SST26VF080AT-80E/MF make it an excellent memory solution for a variety of applications, including digital cameras, MP3 players, wireless devices, networking hardware, and other digital consumer electronics. Its high-speed performance and reliability also make it suitable for industrial and automotive applications where data integrity and operational efficiency are paramount.

Conclusion

In summary, the SST26VF080AT-80E/MF from Microchip Technology is a reliable and high-performance Flash memory chip that offers an excellent balance of speed, power efficiency, and storage capacity, making it an ideal component for designers looking to enhance their embedded systems.
