Microchip Technology PIC16F677-E/P Microcontroller

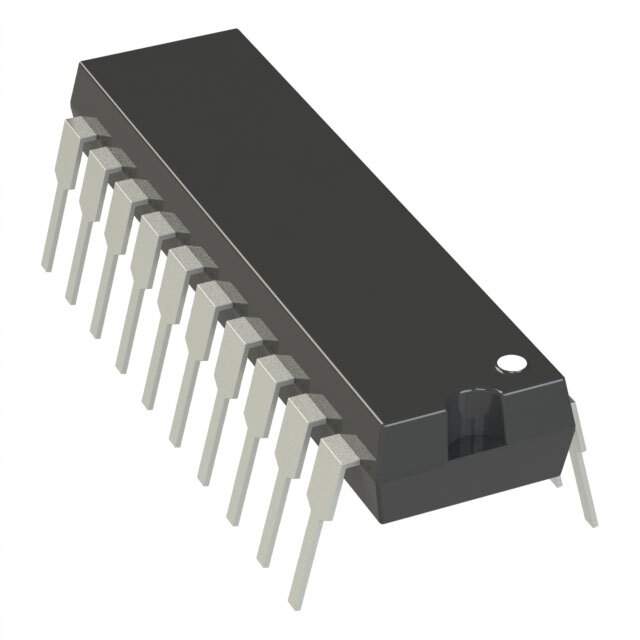

The PIC16F677-E/P from Microchip Technology is a versatile and powerful microcontroller designed for embedded systems requiring low power consumption and high-performance features. This 20-pin PDIP (Plastic Dual In-line Package) microcontroller is a member of Microchip's renowned PIC16F family, known for its ease of use and robust architecture.

The PIC16F677-E/P features a precision 8-bit architecture with an enhanced mid-range core. It boasts a CPU speed of up to 20 MHz, which is driven by an internal oscillator, eliminating the need for external clock components and thereby reducing system cost and complexity. The device also supports a wide operating voltage range from 2.0V to 5.5V, allowing flexibility in power supply design and ensuring compatibility with both TTL and CMOS logic levels.

With 1.75 KB of flash program memory and 128 bytes of RAM, the PIC16F677-E/P provides ample space for application code and data storage. It also includes 256 bytes of EEPROM, which offers reliable non-volatile storage for critical data that must be preserved between power cycles. The microcontroller features an array of integrated peripherals such as an Analog-to-Digital Converter (ADC) with up to 12 channels, two comparators, a Capture/Compare/PWM (CCP) module, and a Universal Synchronous Asynchronous Receiver Transmitter (USART) for serial communication.

Enhanced safety and monitoring capabilities are built into the PIC16F677-E/P, including Power-On Reset (POR), Brown-Out Reset (BOR), and an extended Watchdog Timer (WDT). These features help protect the system against unpredictable conditions like power fluctuations. Additionally, the device supports In-Circuit Serial Programming (ICSP) for easy firmware updates and debugging, as well as in-circuit debugging via two dedicated pins.

Whether you're designing consumer electronics, automotive systems, or IoT devices, the PIC16F677-E/P offers a cost-effective and flexible solution for your microcontroller needs. Its rich set of features and Microchip's commitment to quality make it an excellent choice for your next project.
