Microchip Technology PD70211ILQ-TR Product Overview

The PD70211ILQ-TR is a cutting-edge integrated circuit from Microchip Technology, designed to facilitate Power over Ethernet (PoE) applications. This innovative component is part of Microchip's portfolio of PoE solutions, which are engineered to provide reliable power and data connectivity over a single Ethernet cable. The PD70211ILQ-TR is specifically tailored for use in PoE systems that comply with IEEE 802.3af and IEEE 802.3at standards, making it a versatile choice for a wide range of networked devices.

As a Powered Device (PD) interface controller, the PD70211ILQ-TR is responsible for the critical task of negotiating power allocation with Power Sourcing Equipment (PSE). It ensures that devices such as IP cameras, VoIP phones, wireless access points, and other Ethernet-enabled devices can receive the appropriate power levels for their operation without the need for separate power supplies.

The PD70211ILQ-TR boasts an array of features that make it a robust and efficient choice for PoE applications. It includes support for high power applications up to 30W, providing the necessary power for devices that require more energy. Additionally, the integrated 0.15Ω sense resistor and internal hot-swap MOSFET ensure safe and efficient power management, reducing the need for external components and simplifying the design process.

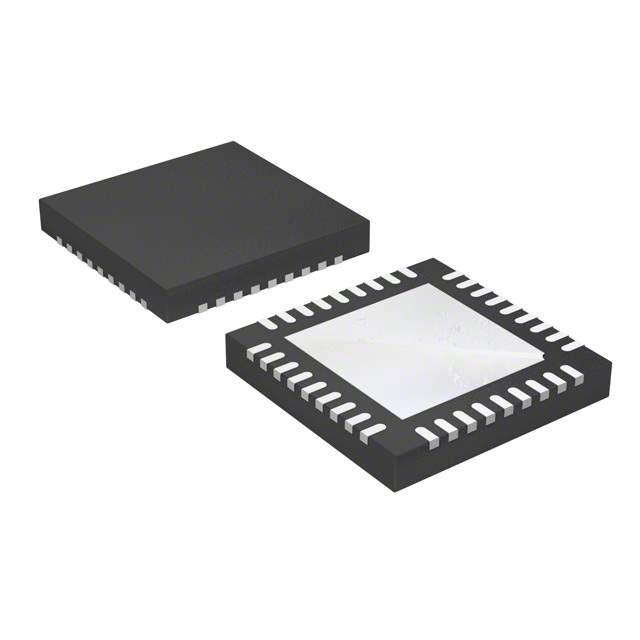

Housed in a compact QFN package, the PD70211ILQ-TR is designed for space-constrained environments. Its small footprint allows for integration into a variety of networked devices without compromising on performance. Moreover, the device features thermal protection and a wide operating temperature range, ensuring reliable operation even in harsh conditions.

The PD70211ILQ-TR is also equipped with advanced diagnostic capabilities, including current and voltage monitoring, which facilitate troubleshooting and enhance the overall reliability of the PoE system. With its combination of power management, protection features, and diagnostic tools, the PD70211ILQ-TR from Microchip Technology represents a comprehensive solution for any PoE-enabled device.
