Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Microchip Technology
Series Military, MIL-PRF-19500
Package Tape & Reel (TR)
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 43V
Voltage - Breakdown (Min) 47.8V
Voltage - Clamping (Max) @ Ipp 69.4V
Current - Peak Pulse (10/1000µs) 21.6A
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -65°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case DO-214AB, SMC
Supplier Device Package SMCJ (DO-214AB)
Base Product Number SMCJ43
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names MSMCJ43A/TRMS
Standard Package 600
Win Source Part Number 1094294-MSMCJ43A/TR
Ultra Librarian 3D Model Ultra Librarian MSMCJ43A/TR CAD Model

Description

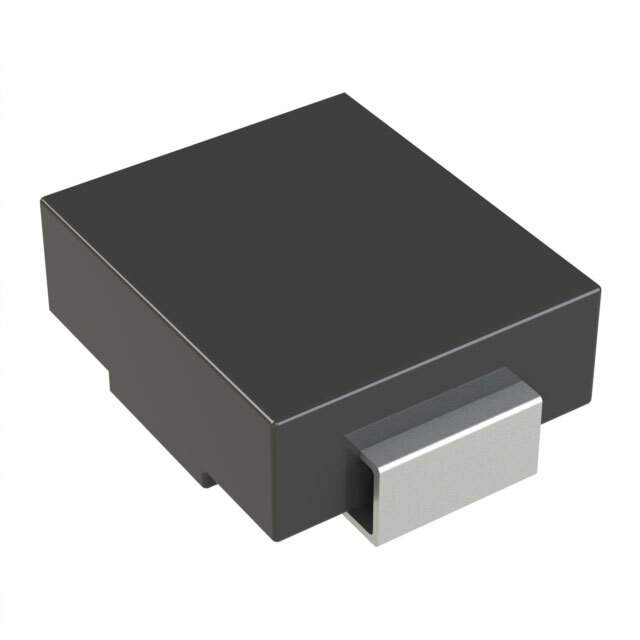

MSMCJ43A/TR - Microchip Technology

The MSMCJ43A/TR from Microchip Technology is a robust transient voltage suppression (TVS) diode designed to protect sensitive electronic equipment from voltage spikes and surges. This high-quality component is engineered to safeguard circuits by clamping excessive transient voltages to a safe level before they can cause damage to other components.

Key Features:

  • Stand-Off Voltage: The device features a stand-off voltage of 43V, providing a reliable barrier against transient events that exceed this threshold.
  • Peak Pulse Power: With a peak pulse power dissipation of 1500W (10/1000μs waveform), the MSMCJ43A/TR can handle significant power spikes, ensuring durable protection for your electronics.
  • Package: The component comes in a compact DO-214AB package, also known as an SMC package, which is ideal for surface-mount applications and helps to save valuable PCB space.
  • High Reliability: Manufactured by Microchip Technology, a leader in the semiconductor industry, this TVS diode promises high reliability and performance consistency.
  • RoHS Compliant: Complying with RoHS directives, the MSMCJ43A/TR is free from hazardous substances, making it an environmentally friendly choice for modern electronic designs.

Applications:

The MSMCJ43A/TR is versatile and can be used in a wide range of applications, including:

  • Consumer Electronics
  • Industrial Systems
  • Telecommunication Devices
  • Power Supply Units
  • Automotive Electronics

Quality Assurance:

Microchip Technology's commitment to quality ensures that the MSMCJ43A/TR TVS diode meets stringent standards for performance and durability. Each component is rigorously tested to ensure it performs to specifications, providing peace of mind for designers and manufacturers alike.

Whether you are designing a new system or looking to upgrade an existing one, the MSMCJ43A/TR from Microchip Technology is an excellent choice for protecting your electronic investments from the unpredictable nature of voltage transients.
