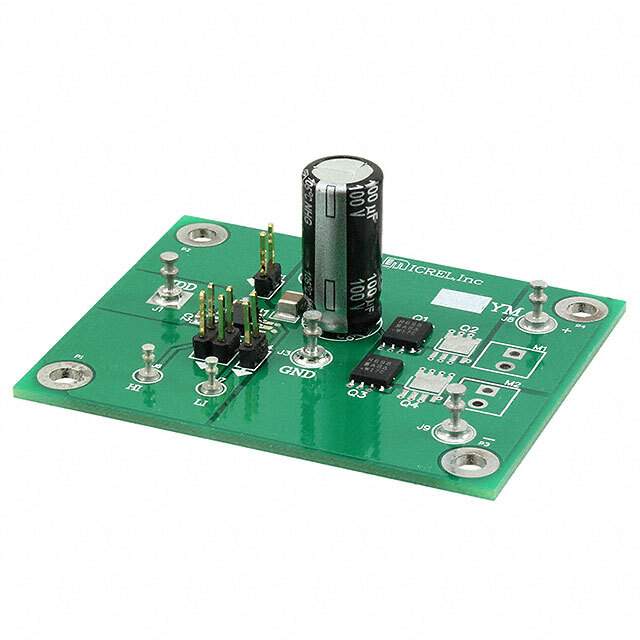

Microchip Technology's MIC4605-2YM-EV Evaluation Board

The MIC4605-2YM-EV is a sophisticated evaluation platform designed by Microchip Technology to showcase the capabilities of the MIC4605, a Half-Bridge MOSFET driver that features adaptive dead time and shoot-through protection. This evaluation board serves as a powerful tool for engineers and designers to test the performance of the MIC4605 in various application scenarios.

Key Features of MIC4605-2YM-EV

• Adaptive Dead-Time Circuitry: The MIC4605-2YM-EV incorporates adaptive dead-time control, which optimizes switching intervals to enhance efficiency and reduce electromagnetic interference (EMI).
• Shoot-Through Protection: The board includes robust shoot-through protection to prevent damage to the MOSFETs from simultaneous high-side and low-side conduction.
• High-Speed Operation: Capable of operating at frequencies up to 100kHz, the MIC4605-2YM-EV is suitable for high-speed applications.
• Under-Voltage Lockout (UVLO): The UVLO feature ensures that the driver operates only when the supply voltage is sufficient, safeguarding the system against low voltage conditions.
• Thermal Shutdown: An integrated thermal shutdown mechanism protects the device from overheating, enhancing the reliability of the system.

Applications

The evaluation board is ideal for testing the MIC4605 in a range of applications, including but not limited to:

• Brushed DC and stepper motor drives
• BLDC motor drives
• Class D audio amplifiers
• Power inverters

Design and Layout

The MIC4605-2YM-EV is engineered with a user-friendly layout that provides easy access to all critical pins and components of the MIC4605 driver. It includes probe points for convenient monitoring of signals and power conditions, and it is built to accommodate a wide range of power supply options, making it a versatile tool for various design requirements.

With its comprehensive feature set and robust design, the MIC4605-2YM-EV evaluation board from Microchip Technology is an invaluable asset for developers looking to expedite the design and testing process of their power management and motor control applications.
