Products specifications Report Issue?

Manufacturer Microchip Technology
Packaging Tube
Part Status Obsolete (End Of Life)
Driven Configuration Low-Side
Channel Type Single
Number of Drivers 1
Gate Type IGBT, N-Channel MOSFET
Supply Voltage (V) 4.5V ~ 18V
Logic Voltage - VIL, VIH 0.8V, 2.4V
Current - Peak Output (Source, Sink) 9A, 9A
Input Type Inverting
Rise / Fall Time (Typ) 20ns, 24ns
Temperature Range - Operating 0°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package TO-220-5
Supplier Device Package TO-220-5
Part Number Series MIC4421
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805123-MIC4421CT

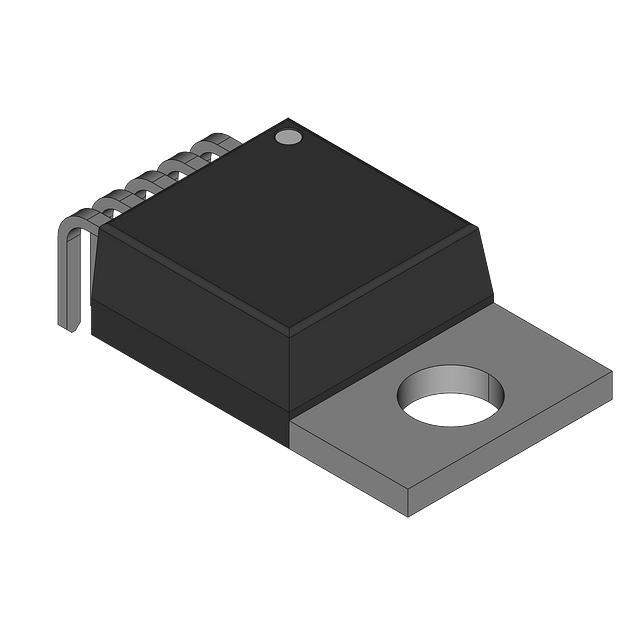

Ultra Librarian 3D Model Ultra Librarian MIC4421CT CAD Model

Description

Product Overview

The MIC4421CT is a robust and efficient MOSFET driver from Microchip Technology, designed to deliver high-speed performance in a variety of applications. This driver is capable of converting low power input signals into the high-current drive needed for efficiently controlling power MOSFETs and IGBTs.

Key Features

  • High Peak Output Current: The MIC4421CT offers an impressive peak output current of 9A, making it suitable for driving large capacitive loads with swift rise and fall times.
  • Low Propagation Delays: With propagation delays typically under 30ns, this driver ensures high-speed operation, which is critical for fast switching applications.
  • Wide Operating Range: It operates over a supply voltage range of 4.5V to 18V, providing flexibility for various circuit designs and compatibility with a range of control logic levels.
  • Latch-Up Protection: The MIC4421CT is designed to withstand up to 500mA of reverse current, offering protection against latch-up, a common issue in power electronics.
  • Low Power Consumption: Its low standby current minimizes power consumption when the driver is not actively switching, contributing to the energy efficiency of the overall system.

Applications

Due to its robustness and high-speed performance, the MIC4421CT is ideal for a wide range of applications, including:

  • Switch-mode power supplies (SMPS)
  • DC-DC converters
  • Motor control circuits
  • Class D switching amplifiers
  • Pulse generators
  • High-speed line drivers

Package and Quality

The MIC4421CT comes in a TO-220-5 package, which is known for its excellent power dissipation characteristics. This makes it suitable for high-power applications where thermal management is crucial. Additionally, Microchip Technology's commitment to quality ensures that this MOSFET driver maintains high reliability and performance standards.

For designers looking for a high-powered, reliable MOSFET driver, the MIC4421CT from Microchip Technology is an excellent choice that combines speed, efficiency, and versatility to meet the demands of modern electronic systems.
