Products specifications Report Issue?

Categories Circuit Protection
Manufacturer ON Semiconductor
Packaging Tape and Reel
Status Obsolete
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff 78V
Voltage - Breakdown (Minimum) 86.7V
Voltage - Clamping (Maximum) at Ipp 126V
Current - Peak Pulse (10/1000μs) 11.4A
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -65°C ~ 150°C
Mounting Style SMD
Manufacturer Package DO-214AB, SMC
Supplier Device Package SMC
Family Part Number 1SMC
Manufacturer Pack Quantity 2,500
MSL Level 1 (Unlimited)
Win Source Part Number 1122700-1SMC78AT3
Manufacturer Homepage www.onsemi.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian 1SMC78AT3 CAD Model

Description

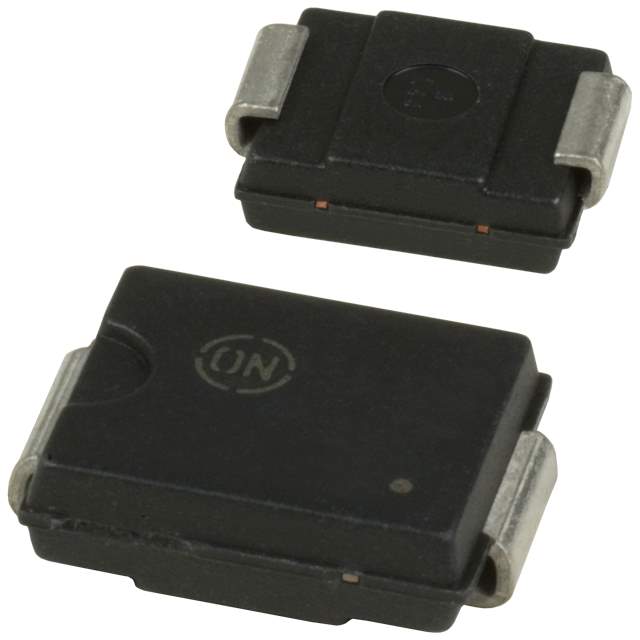

The 1SMC78AT3 is a robust and versatile transient voltage suppression (TVS) diode from ON Semiconductor, a leading provider of semiconductor-based solutions. This device is designed to protect sensitive electronic equipment from voltage spikes and transients induced by lightning and other transient voltage events.

Key Features

  • Stand-off Voltage: The 1SMC78AT3 has a stand-off voltage of 78V, making it suitable for a wide range of applications where this level of voltage protection is required.
  • Peak Pulse Power: It offers a peak pulse power dissipation of 1500 Watts at 10/1000μs waveform, which ensures robust protection against high energy transients.
  • Low Incremental Surge Resistance: The device features an extremely low incremental surge resistance, which helps in providing better performance during surge events.
  • Fast Response Time: With its fast response time to transient events, the 1SMC78AT3 is capable of protecting sensitive circuits almost instantaneously.
  • Operating Temperature Range: It operates within a broad temperature range from -55°C to +150°C, accommodating various environmental conditions.

Applications

The 1SMC78AT3 is commonly used in a variety of applications where voltage protection is critical, such as:

  • Industrial systems
  • Consumer electronics
  • Automotive systems
  • Telecommunications equipment
  • Power supply protection

Quality and Reliability

ON Semiconductor is committed to delivering high-quality products. The 1SMC78AT3 is manufactured in state-of-the-art facilities, ensuring that each device meets the company's rigorous standards for quality and reliability. This TVS diode is a testament to ON Semiconductor's dedication to providing components that ensure the long-term stability and functionality of electronic systems.

Environmental Compliance

The 1SMC78AT3 is environmentally friendly and complies with various international standards, including RoHS and Pb-Free directives, ensuring that it is suitable for use in a wide range of products without compromising environmental sustainability.
