Product Overview: MCP6C02T-050H/Q8BVAO from Microchip Technology

The MCP6C02T-050H/Q8BVAO is a high-precision, bi-directional current-sense amplifier designed by Microchip Technology. This component is tailored for applications requiring accurate current monitoring and is part of Microchip's extensive range of analog products. The device is particularly suitable for industrial, automotive, and consumer applications where power efficiency and monitoring are critical.

This current-sense amplifier is capable of sensing across a very low resistive shunt, which allows it to measure both small and large currents with high accuracy. The MCP6C02T-050H/Q8BVAO features a gain of 50 V/V, which enables it to amplify the voltage across a shunt resistor in a current-sensing application. This high gain factor, coupled with a wide input common-mode range, makes it versatile for various systems.

The device operates over a wide supply voltage range from 3.0V to 5.5V, which allows for flexibility in different power environments. It also boasts a quiescent current of typically 120 µA, making it an energy-efficient choice for battery-powered applications. The extended temperature range of -40°C to +125°C ensures reliable operation in harsh environments, making it suitable for automotive and industrial applications.

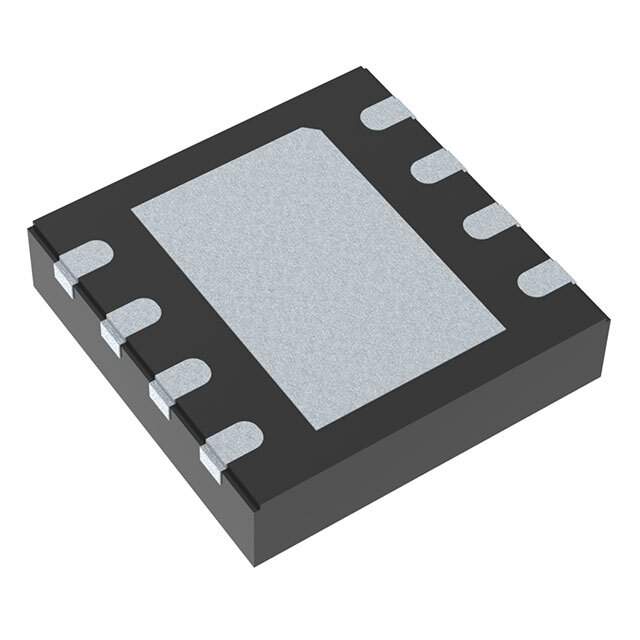

For ease of integration, the MCP6C02T-050H/Q8BVAO is available in a small, 8-lead 2x3 TDFN package. This compact form factor is ideal for space-constrained applications. Additionally, the device features a fast response time, which is essential for overcurrent protection and power management functions.

In summary, the MCP6C02T-050H/Q8BVAO from Microchip Technology is a robust and precise current-sense amplifier that offers a combination of high accuracy, low power consumption, and a compact size, making it an excellent choice for a wide range of applications where current monitoring is of utmost importance.
