Microchip Technology MCP3918A1-E/ML

The MCP3918A1-E/ML is a high-precision, single-channel analog front-end (AFE) designed by Microchip Technology for energy measurement and monitoring systems. This advanced integrated circuit is specifically engineered to work with a wide range of sensors, including current transformers and shunt resistors, to accurately measure electrical parameters such as voltage, current, and power.

Featuring a 24-bit delta-sigma analog-to-digital converter (ADC) with programmable data rates, the MCP3918A1-E/ML provides excellent noise performance and ensures high-resolution readings. Its wide analog input range and programmable gain amplifier (PGA) allow for flexible sensor interfacing, making it an ideal choice for applications that require precise signal acquisition.

The device is equipped with an internal low-drift voltage reference, which enhances measurement accuracy over temperature. Additionally, the MCP3918A1-E/ML includes advanced features such as phase delay compensation and harmonic analysis capabilities, which are crucial for power quality assessment in complex energy systems.

For communication with microcontrollers or other digital systems, the MCP3918A1-E/ML offers a versatile serial peripheral interface (SPI). This allows for easy integration into a variety of system architectures and ensures reliable data transfer.

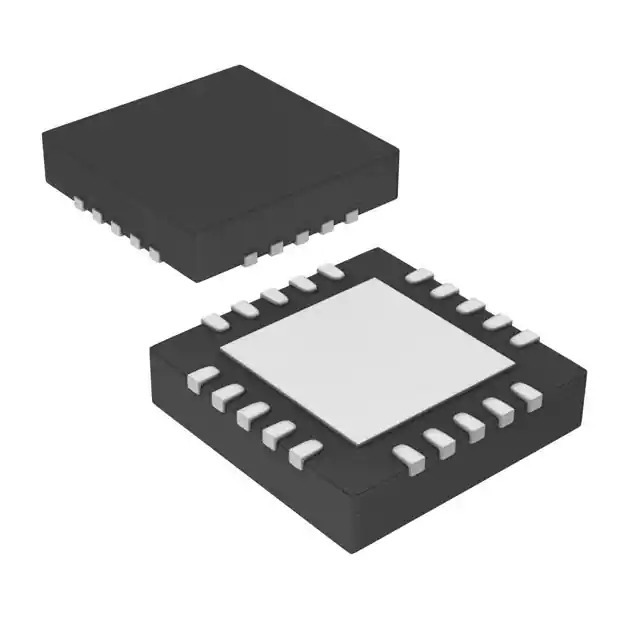

The robust design of the MCP3918A1-E/ML includes built-in overvoltage protection and anti-aliasing filters, which safeguard the device in harsh electrical environments. Its compact 24-lead QFN package makes it suitable for space-constrained applications, while also providing excellent thermal performance.

Overall, the MCP3918A1-E/ML from Microchip Technology is a highly integrated and efficient solution for energy measurement applications. With its precision measurement capabilities and robust feature set, it is well-suited for use in smart meters, power monitoring systems, and renewable energy installations.
