Products specifications Report Issue?

Category Integrated Circuits (ICs)>Interface - Controllers
Mfr Microchip Technology
Package Tray
Protocol Ethernet
Function Controller
Standards 10/100/1000 Base-TX PHY
Voltage - Supply 1.2V, 2.5V, 3.3V
Current - Supply 1 ~ 4mA
Temperature Range - Operating -40°C ~ 85°C
Package / Case 48-VFQFN Exposed Pad
Supplier Device Package 48-SQFN (6x6)
Base Product Number LAN7800
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A991B1
HTSUS 8542.39.0001
Standard Package 490
Win Source Part Number 1013421-LAN7800-I/VSX
Ultra Librarian 3D Model Ultra Librarian LAN7800-I/VSX CAD Model

Description

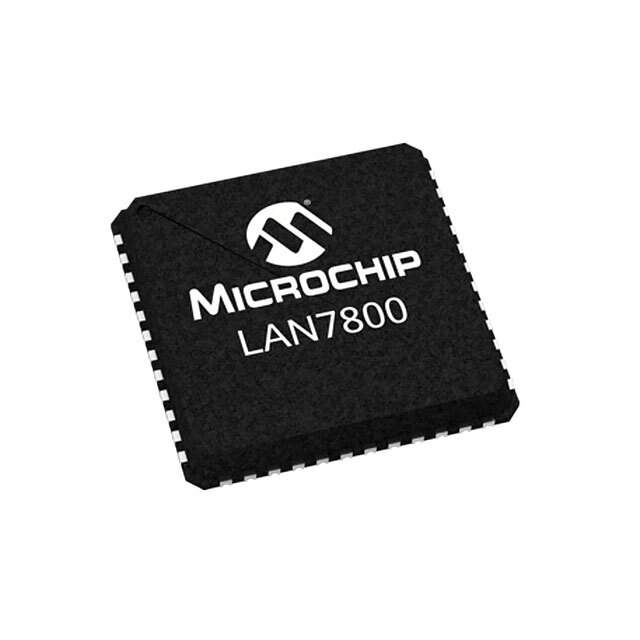

Microchip Technology's LAN7800-I/VSX is a high-performance, compact, and reliable USB 3.1 Gen 1 to Gigabit Ethernet bridge with a variable I/O voltage that provides a powerful solution for converting USB data streams to and from a Gigabit Ethernet link. This product is designed to meet the needs of embedded systems, consumer electronics, and networking equipment where space is at a premium and high data throughput is essential.

The LAN7800-I/VSX is an ideal choice for applications requiring low-power operation, advanced power management features, and high-speed data transfer. With its support for 10/100/1000 Ethernet speeds, this bridge can seamlessly handle large amounts of data, making it perfect for multimedia streaming, network storage, and high-speed data logging applications.

Key features of the LAN7800-I/VSX include:

  • USB 3.1 Gen 1 Interface with data transfer rates up to 5 Gbps, ensuring quick and efficient data handling.
  • Integrated 10/100/1000 Gigabit Ethernet MAC with full-duplex and half-duplex support, offering versatility for various network configurations.
  • Support for IEEE 802.1Q VLAN tagging and 802.1P Layer 2 Priority Encoding, enhancing network segmentation and prioritizing traffic for improved performance.
  • Energy Efficient Ethernet (IEEE 802.3az) support, which reduces power consumption during periods of low data activity, contributing to energy savings and environmental sustainability.
  • Variable I/O voltage range of 1.8V to 3.3V, providing compatibility with a wide range of peripherals and embedded systems.
  • Industrial temperature range of -40°C to +85°C, ensuring reliable operation in harsh environments.

Developers will appreciate the comprehensive driver support provided by Microchip, which includes drivers for most popular operating systems, simplifying the integration process. Furthermore, the LAN7800-I/VSX comes in a compact 56-pin QFN package, which minimizes the PCB footprint and allows for easy integration into space-constrained applications.

Overall, the LAN7800-I/VSX from Microchip Technology is an excellent choice for designers looking for a robust and high-performance USB-to-Ethernet solution that can adapt to a variety of voltage requirements and operating conditions.
