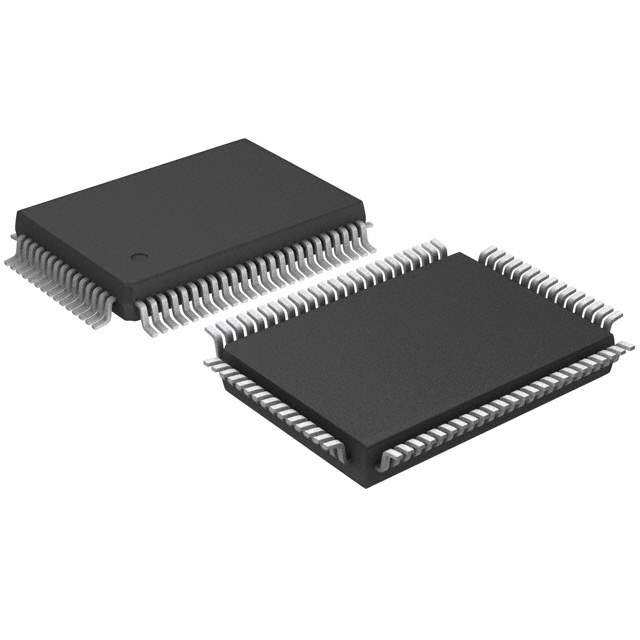

The HV57009PG-G from Microchip Technology is a high-voltage, serially interfaced, 32-channel driver IC designed to cater to a wide array of applications that require multiple output lines with high voltage capabilities. This robust component is particularly well-suited for driving piezoelectric transducers, print heads, LEDs, and other similar devices that require precise manipulation of high voltage signals.
Key Features and Benefits
- High Voltage Output: The HV57009PG-G can handle output voltages up to 300V, making it ideal for driving devices that operate at higher voltage levels.
- 32-Channel Output: With 32 output channels, this IC allows for the control of multiple devices simultaneously, which is essential for complex systems requiring a multitude of control points.
- Serial Interface: The device features a serial interface for data input, which simplifies the connection to microcontrollers or other control units, thereby reducing the number of I/O pins required for operation.
- Flexible Operation: It offers various modes of operation including blanking control and channel grouping, which provides designers with the flexibility to tailor the device's performance to specific application needs.
- Daisy-Chain Capability: Multiple HV57009PG-G devices can be daisy-chained together to expand the system without significantly increasing the complexity of the control interface.
- Robust Protection Features: The IC includes over-temperature protection and under-voltage lockout, enhancing the reliability and longevity of the end application.
- Green Packaging: This product is available in a 44-pin PLCC (Plastic Leaded Chip Carrier) package that is RoHS compliant, minimizing the environmental impact.
Applications
The HV57009PG-G is an excellent choice for diverse applications that include, but are not limited to, inkjet printing, industrial graphics printing, 3D printing, medical imaging, ultrasound transducer driving, and LED displays. Its high voltage capability and multiple output channels make it a versatile solution for designers looking to drive high voltage peripherals with precision and reliability.
By integrating the HV57009PG-G into your design, you can take advantage of Microchip Technology's expertise in high-voltage interface solutions, ensuring performance and quality for your high-demand applications.
