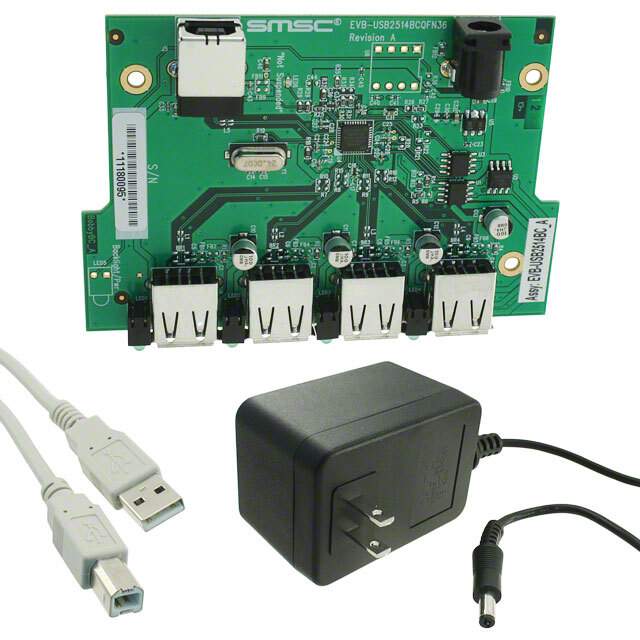

Microchip Technology's EVB-USB2514BC Product Overview

The EVB-USB2514BC is a highly versatile and powerful evaluation board presented by Microchip Technology, designed for developers and engineers who require a robust platform to test and evaluate the USB2514B USB 2.0 Hi-Speed hub controller. This evaluation board serves as an ideal tool for assessing the performance and features of the USB2514B chip, which is widely used in a variety of USB applications.

Key Features of EVB-USB2514BC

• USB 2.0 Compliance: The board is compliant with the USB 2.0 specification, ensuring high-speed connectivity and data transfer rates of up to 480 Mbps.
• Multiple Downstream Ports: It features four downstream ports that allow for the connection of multiple USB devices, making it an excellent choice for expanding USB capabilities in systems.
• Port Status Indicators: Each downstream port is equipped with LED indicators that provide visual feedback on the connection and activity status, aiding in quick diagnostics and monitoring.
• Configurable Options: The EVB-USB2514BC offers configurable options such as compound device support, individual or ganged power switching and over-current sensing, which can be tailored to specific application requirements.
• On-Board EEPROM: An on-board EEPROM allows for the customization of the hub configuration, including the vendor ID, product ID, device class, and power management settings.

Applications

The versatility of the EVB-USB2514BC makes it suitable for a wide range of applications including, but not limited to:

• Desktop and laptop computers
• Docking stations
• Monitor hubs
• Multi-function USB peripherals
• Embedded systems

Why Choose EVB-USB2514BC?

For developers looking to implement a USB hub within their designs, the EVB-USB2514BC offers a convenient and reliable solution. Its ease of use, combined with Microchip Technology's support and documentation, ensures a smooth development process. The board's robust design and comprehensive feature set make it an essential tool for evaluating the capabilities of the USB2514B hub controller and expediting the design-in process.

Whether you're prototyping a new product or refining an existing one, the EVB-USB2514BC from Microchip Technology provides the functionality and flexibility needed to meet the demands of modern USB connectivity challenges.
