EMC1403-1-AIZL-TR - Microchip Technology

The EMC1403-1-AIZL-TR is a high-precision, low-power temperature sensor from Microchip Technology, designed to provide accurate temperature monitoring with an I²C-compatible interface. This device is particularly suitable for applications within the computing, industrial, and telecommunications sectors where precise temperature data is crucial for system performance and reliability.

Key Features:

• High Accuracy: The EMC1403-1-AIZL-TR offers ±1°C accuracy for external diode temperatures and ±2°C for internal diode temperatures, ensuring reliable readings for critical applications.
• Multiple Temperature Zones: It can monitor the temperature of up to one external diode and its own internal temperature, making it versatile for various system configurations.
• Programmable Resolution: The resolution for the external diode temperature readings can be programmed from 0.125°C to 0.0078°C, allowing for fine-tuning based on the needs of the application.
• Low Power Consumption: Designed for efficiency, the EMC1403-1-AIZL-TR is optimal for power-sensitive applications with its low operational and standby power requirements.
• Automatic Shutdown: The sensor features an automatic shutdown mode that reduces power consumption further when the device is inactive.
• Resistance Error Correction: It includes resistance error correction to compensate for voltage drops caused by the PCB traces and connector resistance, ensuring more accurate temperature readings.
• SMBus 2.0/ I²C Interface: The device supports the System Management Bus (SMBus) 2.0 and I²C protocols for easy integration into existing systems.

Applications:

• Notebook and Desktop Computers
• Industrial PCs and Servers
• Embedded Systems
• Telecommunication Equipment
• Environmental Monitoring Systems

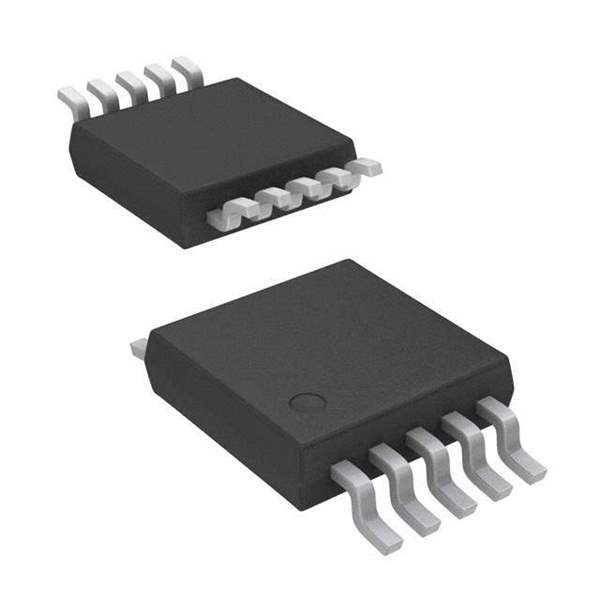

The EMC1403-1-AIZL-TR is provided in a RoHS-compliant, 10-pin MSOP package, which is well-suited for space-constrained applications. Its temperature monitoring capabilities make it an essential component for systems that require precise thermal management to maintain optimal operating conditions and prevent overheating.

Overall, Microchip Technology's EMC1403-1-AIZL-TR is a reliable and versatile solution for advanced temperature monitoring, ensuring systems run within their thermal limits for longevity and stable performance.
