dSPIC33FJ09GS302-E/MX Digital Signal Controller

The dSPIC33FJ09GS302-E/MX is a high-performance 16-bit Digital Signal Controller (DSC) from Microchip Technology, designed to offer the best of both worlds: the processing power of a DSP and the functionality of a microcontroller. It belongs to Microchip's dsPIC33F family and is tailored for applications requiring efficient, high-speed digital signal processing operations such as motor control, power supplies, and conversion systems.

Key Features:

• Core Performance: The dSPIC33FJ09GS302-E/MX operates at 40 MIPS (Million Instructions Per Second) with a 16-bit modified Harvard architecture, enabling simultaneous data and instruction access.
• Memory: It comes with 9 KB of on-chip Flash memory for program storage and 1 KB of SRAM for data, ensuring ample space for complex algorithms and applications.
• Digital Signal Processing: The device features a DSP engine with a high-speed multiplier for single-cycle multiplication and hardware support for division and other complex math operations.
• Robust Peripheral Set: This DSC is equipped with a rich set of peripherals, including a 10-bit Analog-to-Digital Converter (ADC), Input Capture, Output Compare/PWM, and standard communication modules like UART, SPI, and I2C.
• Power Management: It supports multiple power-saving modes, which allow for reduced power consumption during idle periods.

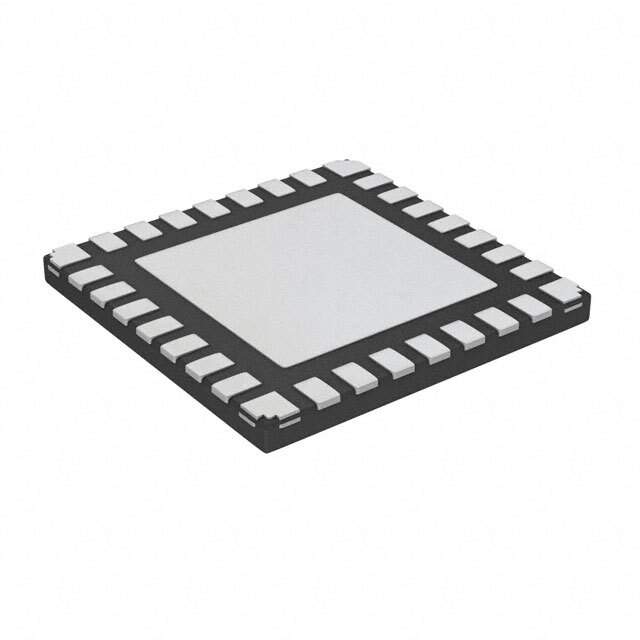

• Package: The dSPIC33FJ09GS302-E/MX is available in a 28-pin QFN package, ideal for space-constrained applications.
• Temperature Range: The device can operate over the industrial temperature range, ensuring reliability in harsh environments.

Applications:

The dSPIC33FJ09GS302-E/MX is versatile and can be utilized in a wide array of applications. It is particularly well-suited for:

• Advanced motor control systems
• Power supply and power management systems
• Intelligent sensor processing
• Automotive and transportation
• Industrial control systems

With its robust architecture, comprehensive feature set, and proven reliability, the dSPIC33FJ09GS302-E/MX from Microchip Technology provides a cost-effective solution for designers who require the performance of a DSP with the ease of use of a microcontroller.
