Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>Microcontrollers
Mfr Microchip Technology
Series SAM D20J
Package Tray
Core Processor ARM® Cortex®-M0+
Core Size 32-Bit Single-Core
Speed 48MHz
Connectivity I²C, SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, WDT
Number of I/O 52
Program Memory Size 32KB (32K x 8)
Program Memory Type FLASH
EEPROM Size -
RAM Size 4K x 8
Voltage - Supply (Vcc/Vdd) 1.62V ~ 3.6V
Data Converters A/D 20x12b; D/A 1x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 64-TQFP Exposed Pad
Supplier Device Package 64-TQFP-EP (10x10)
Base Product Number ATSAMD20
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Standard Package 160 pcs
Win Source Part Number 1381484-ATSAMD20J15B-AU
Ultra Librarian 3D Model Ultra Librarian ATSAMD20J15B-AU CAD Model

Description

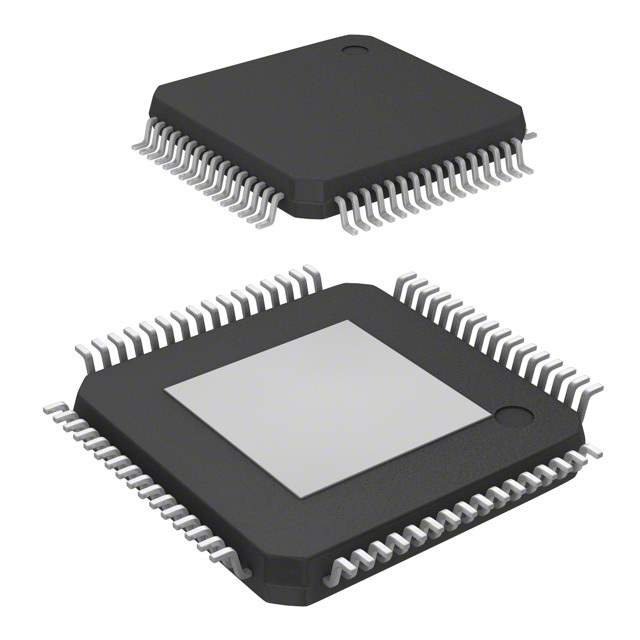

Microchip Technology's ATSAMD20J15B-AU Microcontroller

The ATSAMD20J15B-AU is a high-performance, low-power microcontroller from Microchip Technology, designed to offer a perfect blend of efficiency and versatility for a wide range of embedded applications. This 32-bit microcontroller is based on the ARM Cortex-M0+ processor, which provides a balance between power consumption and processing capability, making it an ideal choice for battery-powered devices and power-sensitive applications.

Featuring a maximum clock frequency of 48 MHz, the ATSAMD20J15B-AU comes with 32KB of RAM and 256KB of flash memory, providing ample space for your application code and data storage. The microcontroller is housed in a 64-pin TQFP (Thin Quad Flat Pack) package, which offers a compact footprint suitable for space-constrained designs.

This microcontroller is equipped with an extensive set of peripherals, including multiple serial communication modules (SERCOM) that can be configured to act as USART, UART, SPI, and I2C interfaces, allowing for flexible connectivity options. With its 12-bit ADC (Analog-to-Digital Converter), the ATSAMD20J15B-AU can handle analog inputs with precision, making it a great choice for sensor interfacing and data acquisition tasks.

Moreover, the device supports touch sensing with its built-in Peripheral Touch Controller, enabling the development of intuitive user interfaces with capacitive buttons, sliders, and wheels. The microcontroller also boasts a variety of timers, counters, and PWM (Pulse Width Modulation) channels, which are essential for tasks like motor control, LED dimming, and other time-sensitive operations.

For security and data protection, the ATSAMD20J15B-AU includes features such as a Watchdog Timer, to ensure the system continues to operate even if the main application becomes unresponsive, and a Brown-Out Detector, to safeguard the system from low voltage conditions.

With its robust feature set, the ATSAMD20J15B-AU from Microchip Technology is a versatile and reliable choice for designers looking to create efficient, low-power embedded systems for industrial control, consumer electronics, IoT devices, and much more.
