The ATMEGA168A-MMH is a high-performance, low-power Microchip picoPower® 8-bit AVR® RISC-based microcontroller that combines 16KB ISP flash memory, 512-Byte EEPROM, 1KB SRAM, 23 general purpose I/O lines, 32 general purpose working registers, three flexible Timer/Counters with compare modes, internal and external interrupts, serial programmable USART, a byte-oriented 2-wire serial interface, SPI serial port, a 6-channel 10-bit A/D converter (8 channels in TQFP and QFN/MLF packages), programmable watchdog timer with internal oscillator, and five software selectable power saving modes. The device operates between 1.8-5.5 volts.
By executing powerful instructions in a single clock cycle, the ATMEGA168A-MMH achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed. This microcontroller is designed for more complex applications where a small package leads to a more compact and space-saving design. It is particularly suitable for automotive, industrial, consumer, and Internet of Things (IoT) applications where robust operation and power efficiency are crucial.
Key Features:
- Advanced RISC Architecture – Offers efficient data processing and high throughput.
- High Endurance Non-volatile Memory Segments – Ensures reliable storage for firmware and application data.
- Power-on Reset and Programmable Brown-out Detection – Provides protection for the application during unpredictable power fluctuations.
- In-System Programmable via SPI Port – Allows for convenient firmware updates.
- External and Internal Interrupt Sources – Enables responsive interaction with peripheral devices or internal events.
- Six Sleep Modes – Supports optimized power consumption tailored to different application needs.
Package and Availability:

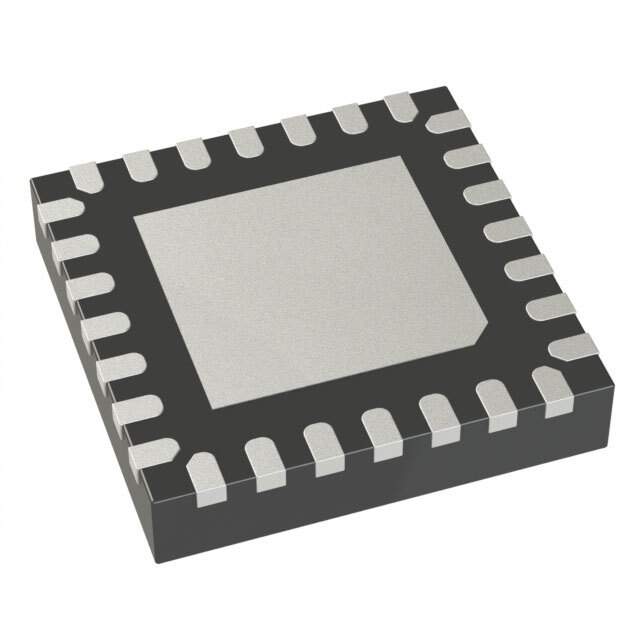

The ATMEGA168A-MMH comes in a 28-pin QFN package and is available for order from Microchip Technology's official distributors and online store. The package is designed to be robust and suitable for automated assembly processes, ensuring reliability and ease of integration into a wide range of electronic products.
