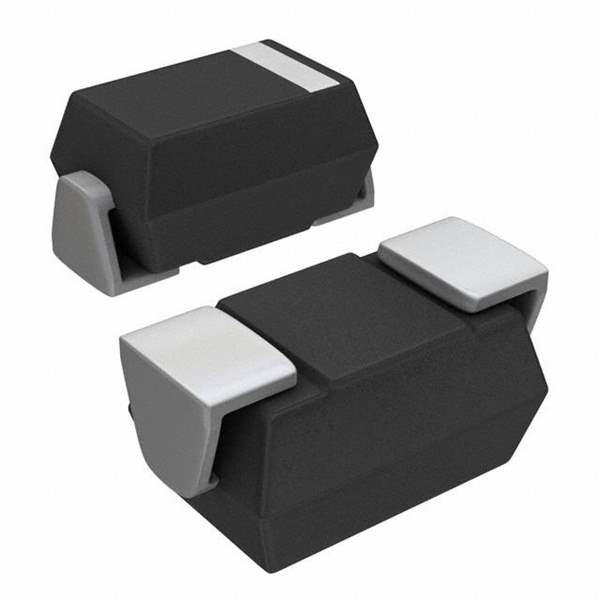

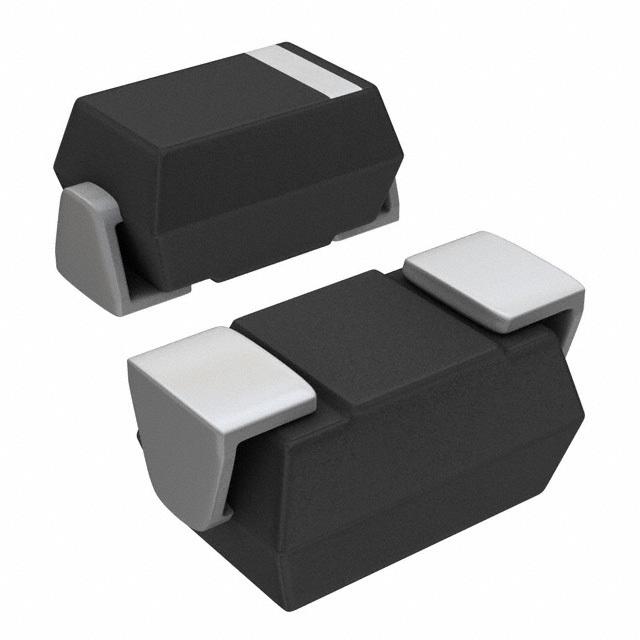

SK33A-LTP Micro Commercial Co
Same model may have multiple batches, images only for reference.

SK33A-LTP

Part No SK33A-LTP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 3A DO214AC
Datasheet
SK33A-LTP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 500mV @ 3A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 500μA @ 30V
Capacitance @ Vr, F 250pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package DO-214AC (SMA)
Operating Temperature - Junction -50°C to 125°C
Win Source Part Number 1096628-SK33A-LTP
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Power Management, Automotive, Commercial, Industrial
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian SK33A-LTP CAD Model

Description

The Micro Commercial Co SK33A-LTP is a Schottky diode with a maximum reverse voltage of 30V and an average rectified current of 3A.

  • Maximum Reverse Voltage: 30V
  • Average Rectified Current: 3A
  • Forward Voltage: 500mV @ 3A
  • Reverse Leakage Current: 500μA @ 30V
  • Capacitance: 250pF @ 4V, 1MHz
  • Operating Temperature Range: -50°C to 125°C
  • Applications: Power management, automotive, commercial, and industrial
  • Package: DO-214AC (SMA)
  • Packaging: Reel of 5000 pieces
