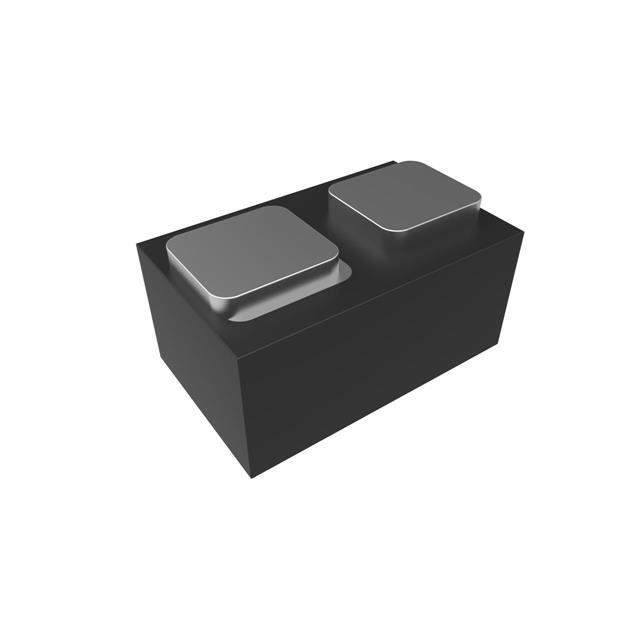

RB520S-30LP-TP Real Image
Same model may have multiple batches, images only for reference.

RB520S-30LP-TP

Part No RB520S-30LP-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 100MA SOD882  /  Diode Schottky 30 V 100mA Surface Mount SOD-882
Datasheet
RB520S-30LP-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Micro Commercial Co
Package Tape & Reel
Product Status Obsolete
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 100mA
Voltage - Forward (Vf) (Max) @ If 450 mV @ 10 mA
Speed Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr 500 nA @ 10 V
Mounting SMD (SMT)
Package / Case SOD-882
Supplier Device Package SOD-882
Operating Temperature - Junction 125°C (Max)
Base Product Number RB520S-30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Names RB520S30LPTP,-RB520S-30LP-TPMSDKR,RB520S-30LP-TPMSTR,RB520S-30LP-TPMSDKR,1505-RB520S-30LP-TPTR,-RB520S-30LP-TPMSTR,353-RB520S-30LP-TP-ND,RB520S-30LP-TPMSCT,-RB520S-30LP-TPMSCT
Standard Package 10,000
Win Source Part Number 1143541-RB520S-30LP-TP
Ultra Librarian 3D Model Ultra Librarian RB520S-30LP-TP CAD Model

Description

The RB520S-30LP-TP is a Schottky diode with a maximum reverse voltage of 30 V and an average rectified current of 100mA.

  • Maximum Reverse Voltage: 30 V
  • Average Rectified Current: 100mA
  • Forward Voltage: 450 mV @ 10 mA
  • Reverse Leakage Current: 500 nA @ 10 V
  • Application: Small signal applications with a speed of less than 200mA (Io)
  • Package: Tape & reel
  • Standard Package: 10,000
  • Mounting Style: SMD (SMT)
  • Package/Case: SOD-882
  • Supplier Device Package: SOD-882
  • Operating Temperature Range: Up to 125°C (Max)
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH unaffected
  • HTSUS: 8541.10.0070
  • Manufacturer: Micro Commercial Co
  • Win Source Part Number: 1143541-RB520S-30LP-TP
