Overview

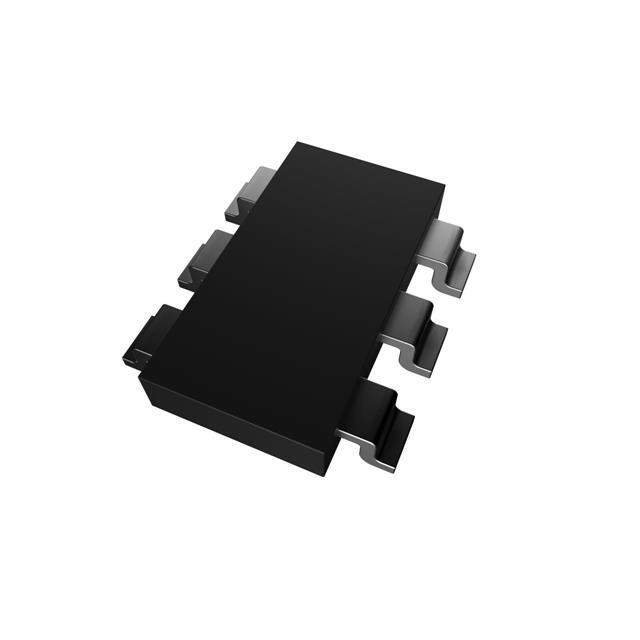

The BAT54SDW-TP is a Schottky diode array configured for dual, common-cathode applications. Its main operational advantage is in providing quick response times for both analog and digital electronic circuits.

Features and Benefits

• Superior switching speed for time-critical applications.
• Low forward voltage drop enhances efficiency.
• Common-cathode configuration allows versatile use in circuit design.

Applications

• Power supplies
• Frequency converters
• Data lines protection
• Industrial control systems

Additional Details

Its flexibility makes the BAT54SDW-TP well-suited for high-speed signal handling and DC to DC conversion efficiency improvements.
