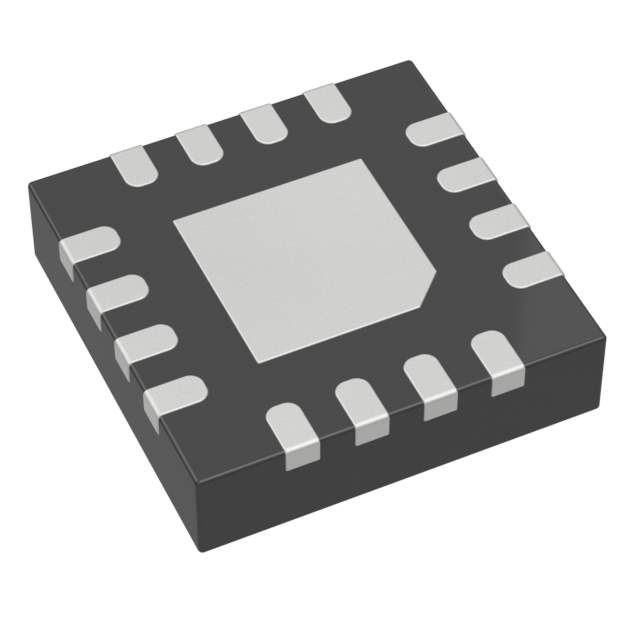

The SY89873LMGTR is a precision, high-speed 2.5V/3.3V limiting post amplifier with programmable voltage gain and offset adjust, manufactured by Micrel (now Microchip Technology). It is designed for use in fiber optic receiver applications and other high-speed data communication systems. The device is specifically tailored to amplify weak input signals while preserving signal integrity.
Applications:
- Fiber Optic Receivers: Including SONET/SDH and Gigabit Ethernet systems.
- High-Speed Data Communications: Such as backplanes and cable drivers.
- Optical Transceivers: In modules for data transmission.
- Test and Measurement Equipment: For signal amplification and conditioning.
Features:
- High Bandwidth: Supports data rates up to several Gbps.
- Low Input Noise: Minimizes signal degradation and enhances sensitivity.
- Programmable Gain: Allows optimization for various input signal levels.
- Offset Adjust: Compensates for DC offsets in the input signal.
- Limiting Output: Provides a stable output amplitude, regardless of input signal strength.
- Single 2.5V/3.3V Supply: Simplifies power supply requirements.
- Small Footprint Package: Suitable for space-constrained applications.
Benefits:
- Improved Signal Integrity: The low noise and high bandwidth ensure accurate data transmission and reception.
- Enhanced Sensitivity: The programmable gain allows the device to amplify weak input signals, improving receiver performance.
- Simplified System Design: The single supply voltage and small package size reduce design complexity and board space.
- Stable Output: The limiting output provides a consistent signal amplitude, simplifying downstream processing.
- Versatile Application: Suitable for various high-speed data communication systems, including fiber optic and backplane applications.
Additional Details:
The SY89873LMGTR is typically used in conjunction with a transimpedance amplifier (TIA) in fiber optic receiver modules. The programmable gain is adjusted to optimize the signal-to-noise ratio (SNR) for the specific application. The offset adjust feature compensates for any DC offsets introduced by the TIA or other components in the signal path. Detailed specifications, including bandwidth, input noise, gain range, and power consumption, can be found in the device datasheet provided by Microchip Technology.
