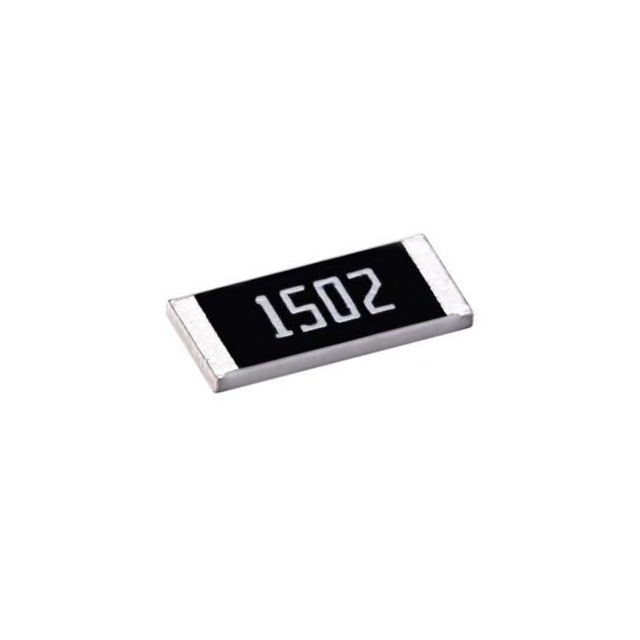

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Meritek
Series CR
Package Tape & Reel (TR)
Resistance 100 Ohms
Tolerance ±5%
Power (Watts) 0.75W, 3/4W
Composition Thick Film
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2010 (5025 Metric)
Dimension 0.197" L x 0.098" W (5.00mm x 2.50mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 2997-CR02101JTR
Standard Package 4,000
Win Source Part Number 1209592-CR02101J
Ultra Librarian 3D Model Ultra Librarian CR02101J CAD Model

Description

The CR02101J is a chip resistor that comes in a tape and reel package.

  • Manufacturer: Meritek
  • Resistor Type: Thick Film
  • Resistance: 100 Ohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Terminations: Two
  • Package/Case: 2010 (5025 Metric)
  • Height: 0.026" (0.65mm)
