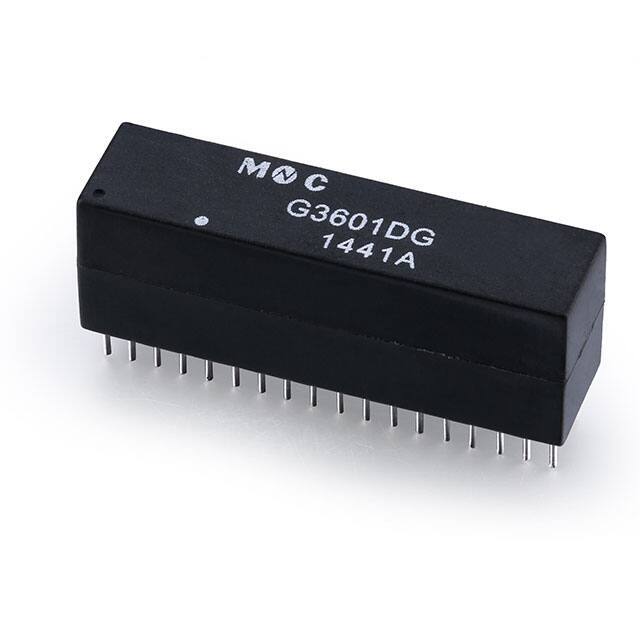

Same model may have multiple batches, images only for reference.
G3601DG
Same model may have multiple batches, images only for reference.

G3601DG

Part No G3601DG
Manufacturer Mentech Technology USA Inc.
Catalog Pulse Transformers
Description QUAD LAN XFMR 1000 BASE-T
Datasheet
G3601DG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Mentech Technology USA Inc.
Package Tube
Product Status Active
Transformer Type LAN 10/100/1000 Base-T
Inductance 350µH
Mounting Type Through Hole
Size / Dimension 1.307" L x 0.350" W (33.20mm x 8.90mm)
Height - Seated (Max) 0.472" (12.00mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 5 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.9000
Win Source Part Number 872506-G3601DG
Ultra Librarian 3D Model Ultra Librarian G3601DG CAD Model

Description

The 872506-G3601DG is a pulse transformer from Mentech Technology USA Inc.

  • Series: LAN 10/100/1000 Base-T transformer
  • Application: high-speed data transmission
  • Size: 1.307" L x 0.350" W (33.20mm x 8.90mm)
  • Mounting: through-hole
  • Inductance: 350µH
  • Operating Temperature: 0°C to 70°C
  • Package: tube
  • Standard Package: 5 pcs
  • ECCN: EAR99 compliant
  • Product Status: active
