Same model may have multiple batches, images only for reference.

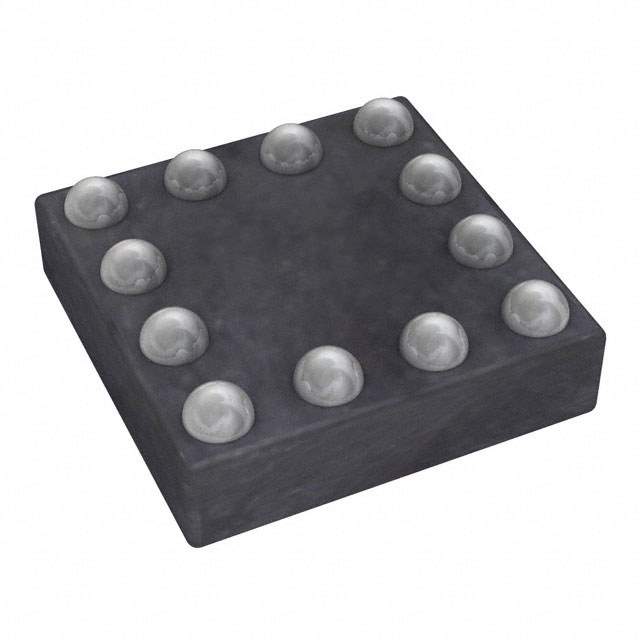

MMC34160PJ Real Image
Same model may have multiple batches, images only for reference.

MMC34160PJ

Part No MMC34160PJ
Manufacturer Memsic Inc.
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description IC MAGNETIC SENSOR 3AXIS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Memsic Inc.
Standard Package 1
Category Sensors Transducers
Family Magnetic Sensors - Linear Compass (ICs)
Packaging *
Type Compass/Magnetometer
Technology Magnetoresistive
Axis X Y Z
Sensing Range ±1.6mT
Operating Supply Voltage 1.62 V ~ 3.6 V
Current - Supply (Max) 140µA
Output Type I2C
Resolution 16 b
Bandwidth 800Hz
Operating Temperature Range -40°C ~ 85°C (TA)
Features Sleep Mode Temperature Compensated
Package 12-WFBGA
Manufacturer Device Package *
Win Source Part Number 041732-MMC34160PJ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MMC34160PJ CAD Model

Description

The Memsic Inc. MMC34160PJ is a magnetic sensor that belongs to the Sensors Transducers category.

  • Function: Linear compass IC
  • Axes: X, Y, and Z
  • Sensing Range: ±1.6mT
  • Resolution: 16 bits
  • Output: I2C
  • Operating Temperature Range: -40°C to 85°C
  • Supply and demand status: balanced
  • Package: 12-WFBGA
  • Features: Sleep mode and temperature compensation
